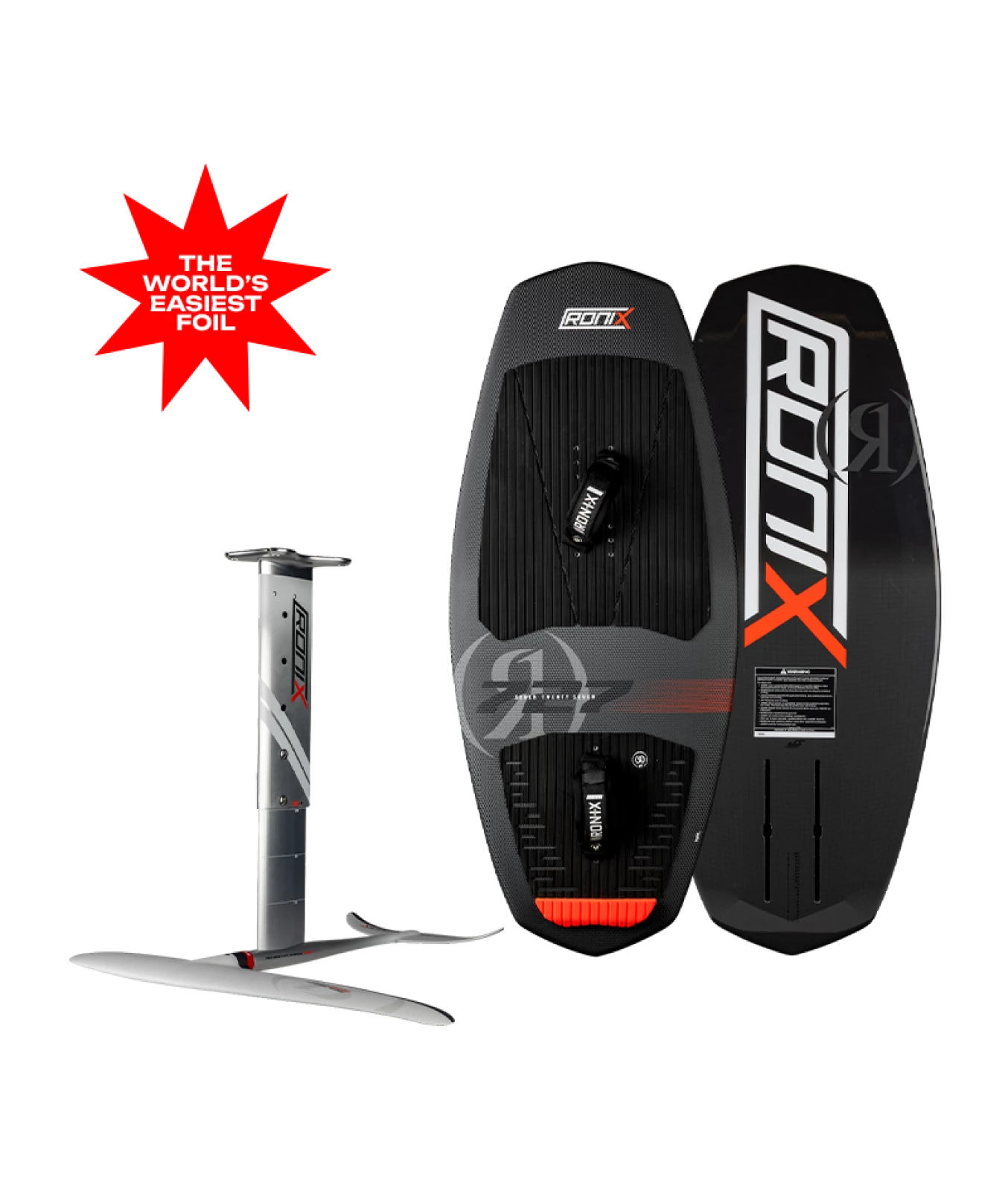

Wakefoiling:








SUMMARY
BALANCE FRONT WING - 1300cm²
BALANCE REAR STABILIZER - 240cm²
SHIFT MAST - 17" / 20" / 23" / 26"
LINK 3D FUSELAGE - 39cm
727 BOARD - 3'8" / 4'1" / 4'8"
VERTICAL STABILIZER - 26cm²
ABILITY: BEGINNER
Our best-selling set up for a reason - now has 2 additional mast heights.
Welcome to the Stairway to the Heaven. The gateway to your flight enchantment.
This patent pending Shift Mast will accomplish 3 things for you.
- Make deep water starts a breeze.
- Give you the confidence to turn your foil kit and really understand the correct body position as you navigate your set up through the waters.
- Begin your journey of flying without a handle.
Featuring our adjustable shift mast in 4 varying heights that will advance your riding as you progress to the next higher mast height.
The gateway to flight – the easiest foil set up available to experience foiling’s ups and downs – complete with an adjustable mast and a stable wing setup. This series will accomplish 3 things for you. 1. Make deep water starts a breeze. 2. Give you the confidence to turn your foil and really understand the correct body position as you navigate your set up through the waters. 3. Begin your journey of flying without a handle in small to mid size wave conditions. The Balance 1300 creates a nimble turn that will easily roll over to edge with its elliptical outline and additional width. It will quickly set you in the sweet spot, keep you on your specified flight pattern and do it with a consistent, stable edge hold. We love the fact that the carbon wing is painted over in white so you can easily see where the front wing is relative to the waterline to help prevent breeching. Enjoy your Stairway to Heaven.

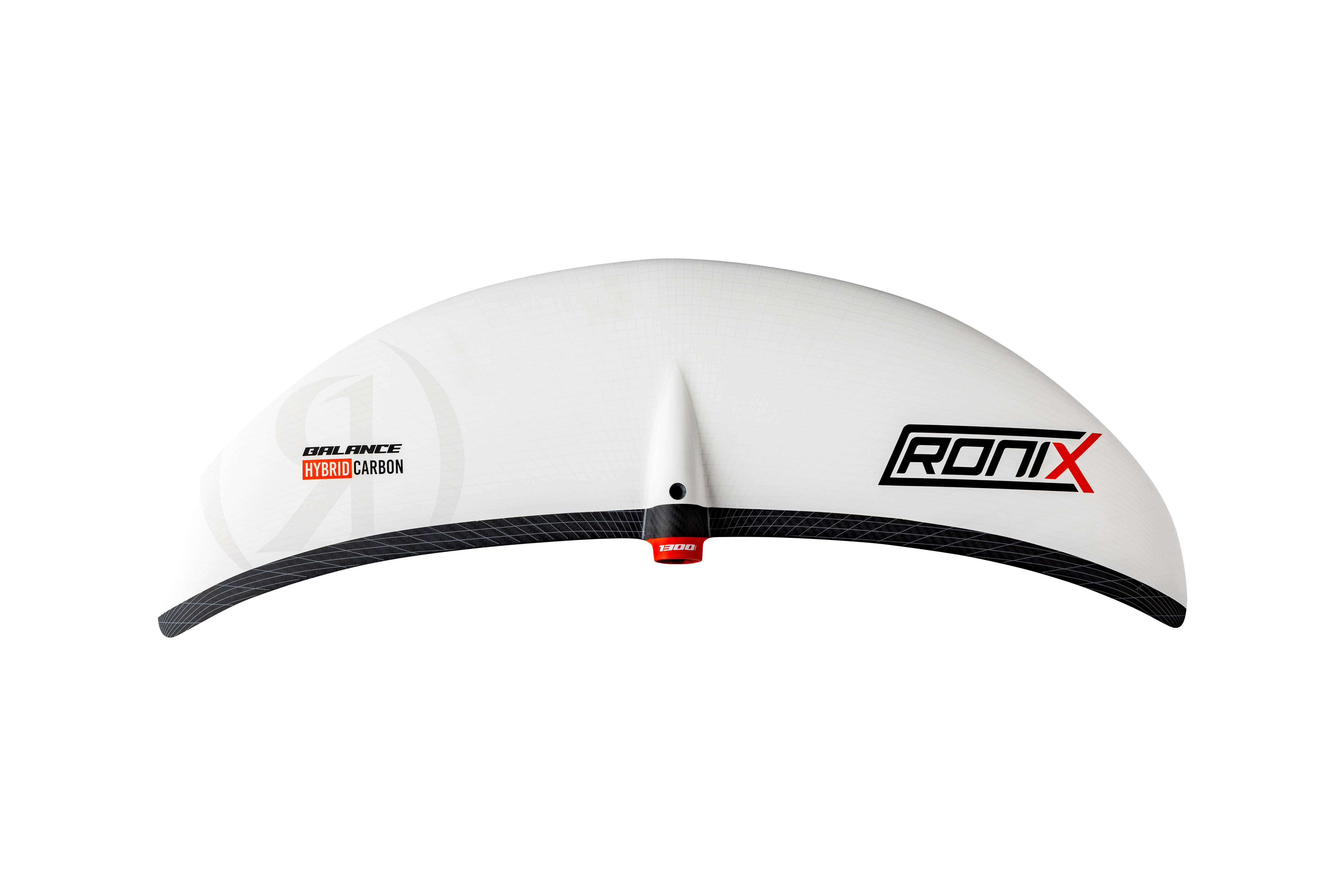

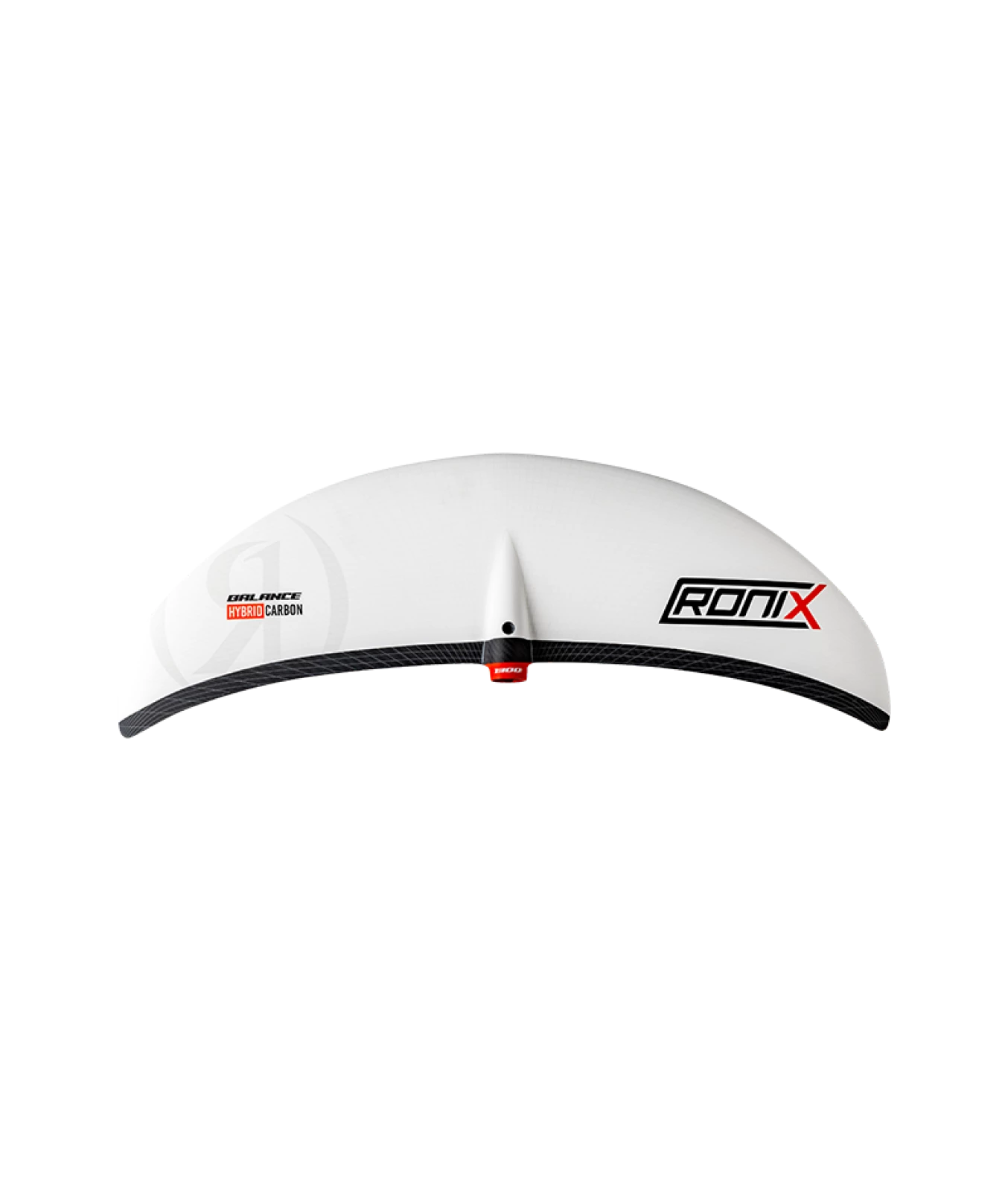

BALANCE FRONT WING
1300cm²
UPING THE ANTE ON CONSISTENCY AND STABILITY
Rhythmic flow of a sequence of movements, a common theme in analyzing foils is getting great drive and lift but having a hard time controlling it. The board will skyrocket to the top, plunge to the bottom, or somewhere in between. This series of wings will ask you what floor on the elevator do you want to reach – and most importantly – keep you there. A nimble turn that will easily roll over to edge with its elliptical outline and additional width. It will quickly set you in the sweet spot, keep you on your specified flight pattern and do it with a quicker reacting edge hold. Offering a built in depth gauge - a white paint over the carbon fiber makes it easier to see how deep your foil set up is under the water.
SPECIFICATIONS
WINGSPAN - 76cm
AVERAGE CHORD - 18.5
ASPECT RATIO - 4.4

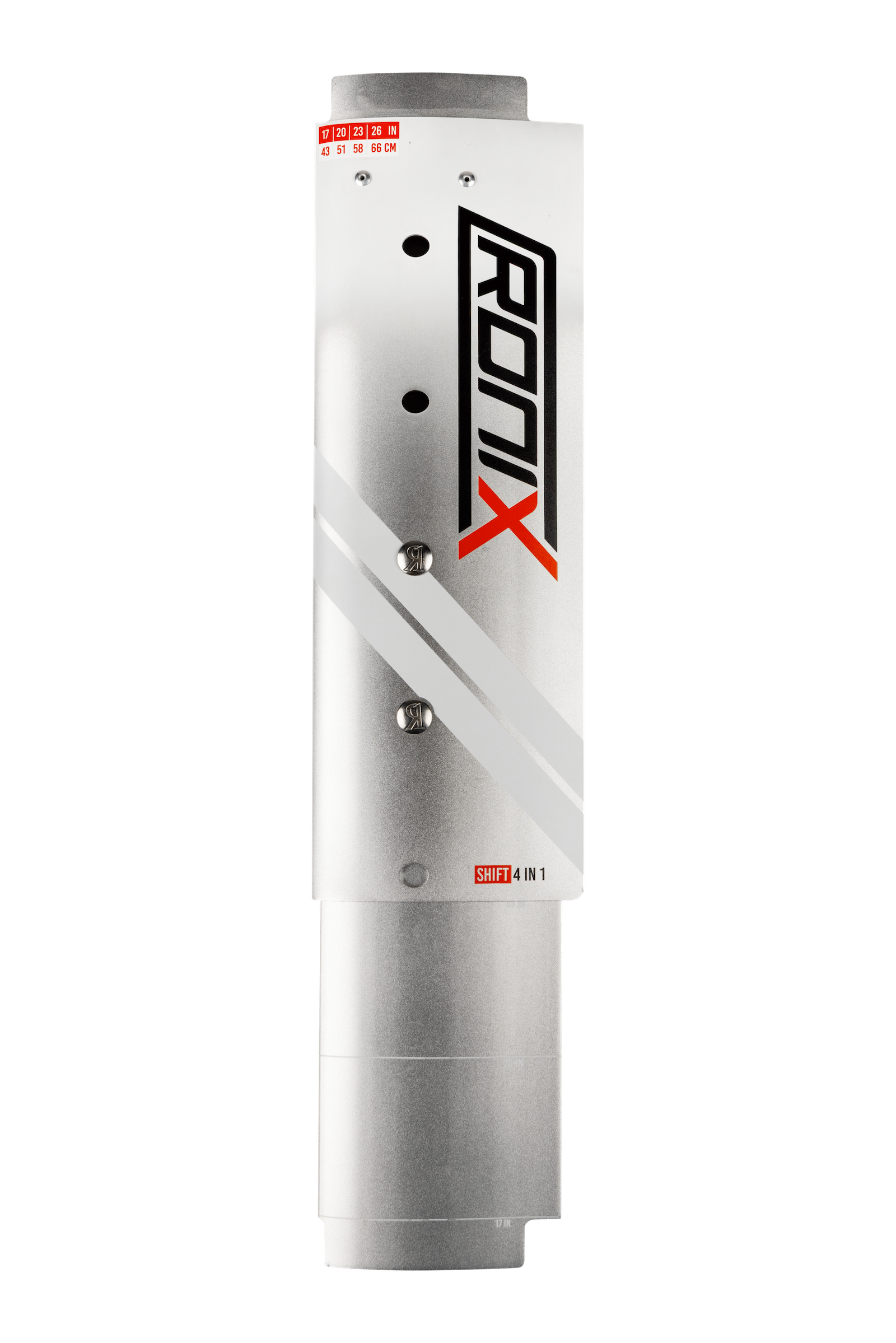

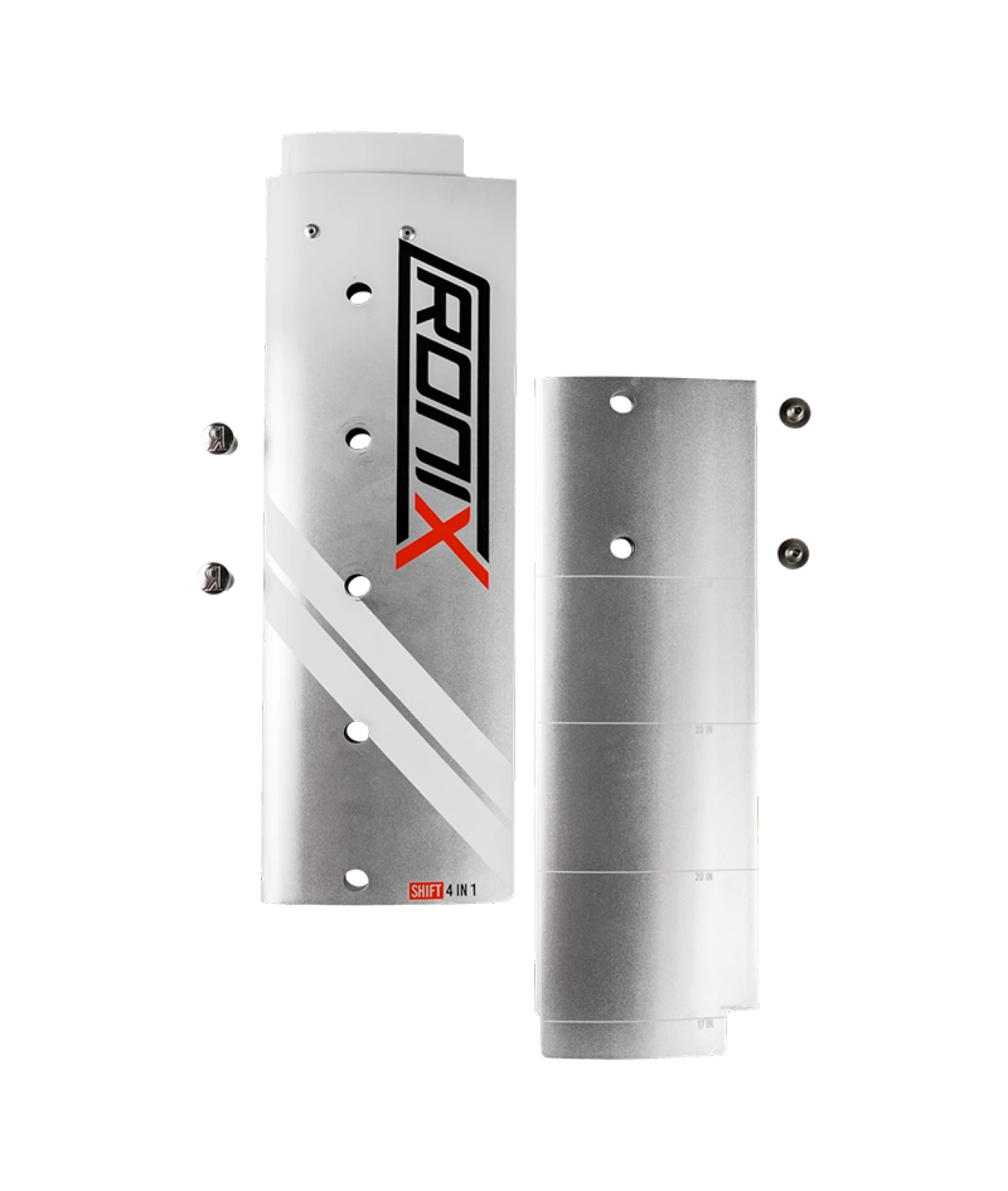

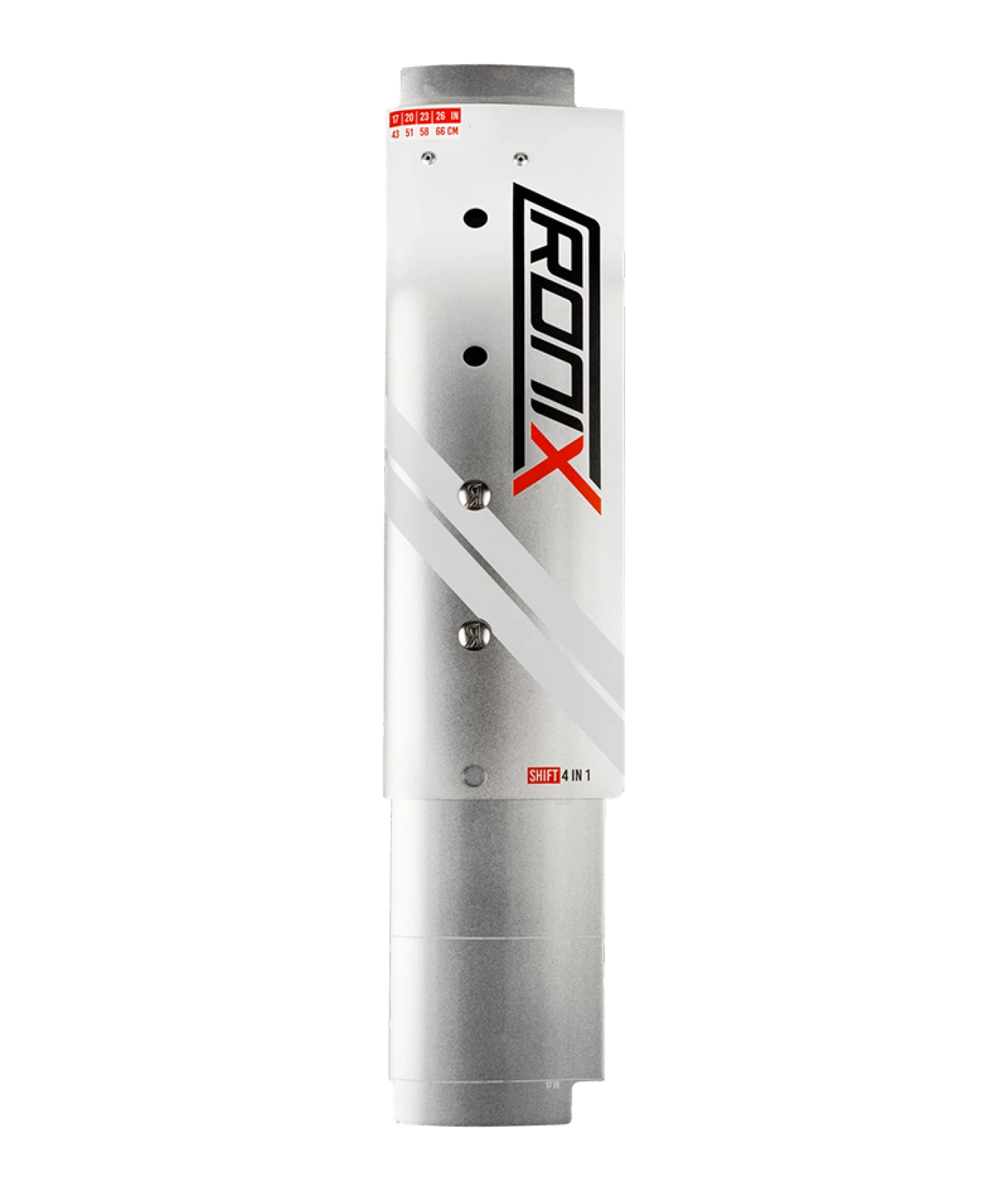

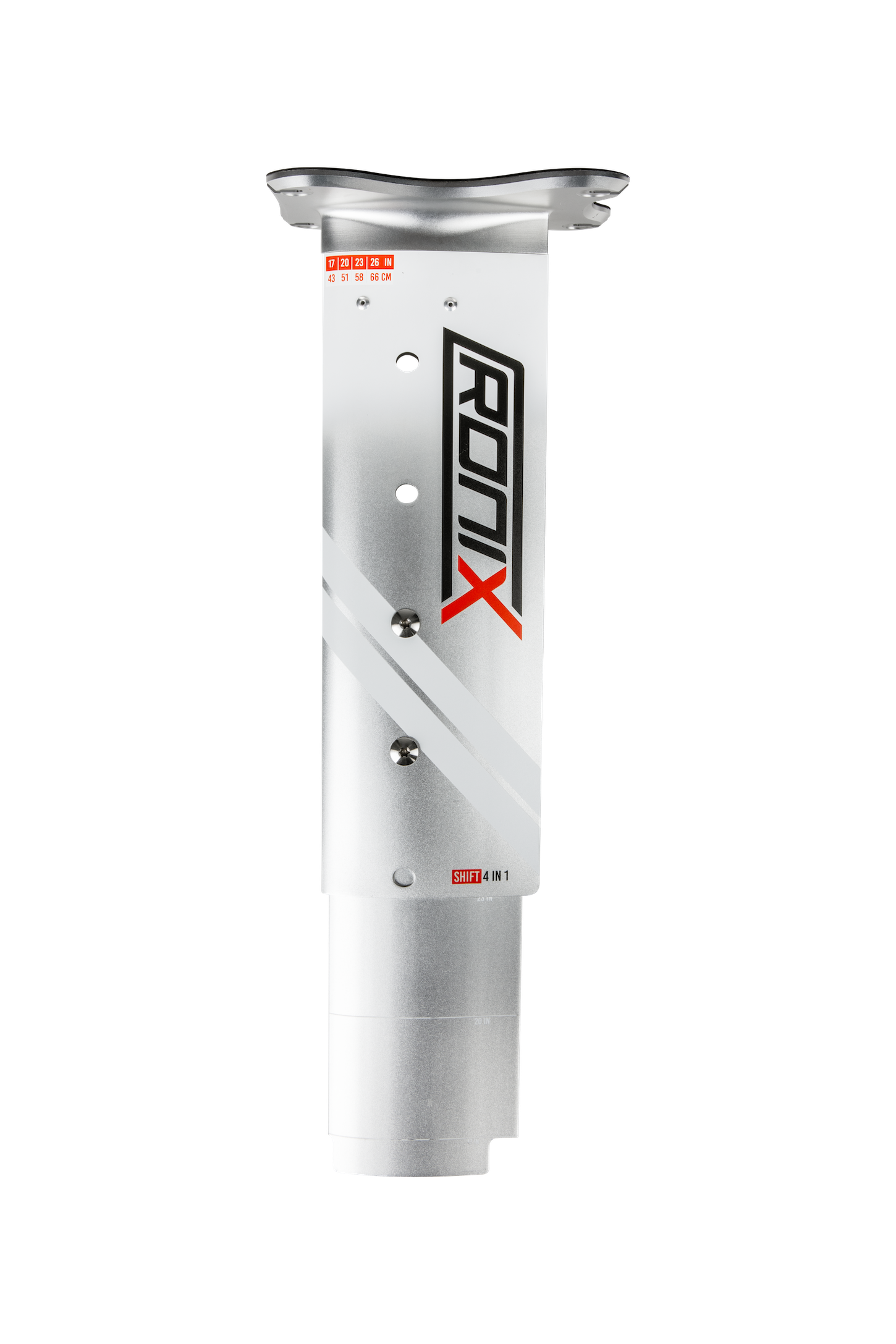

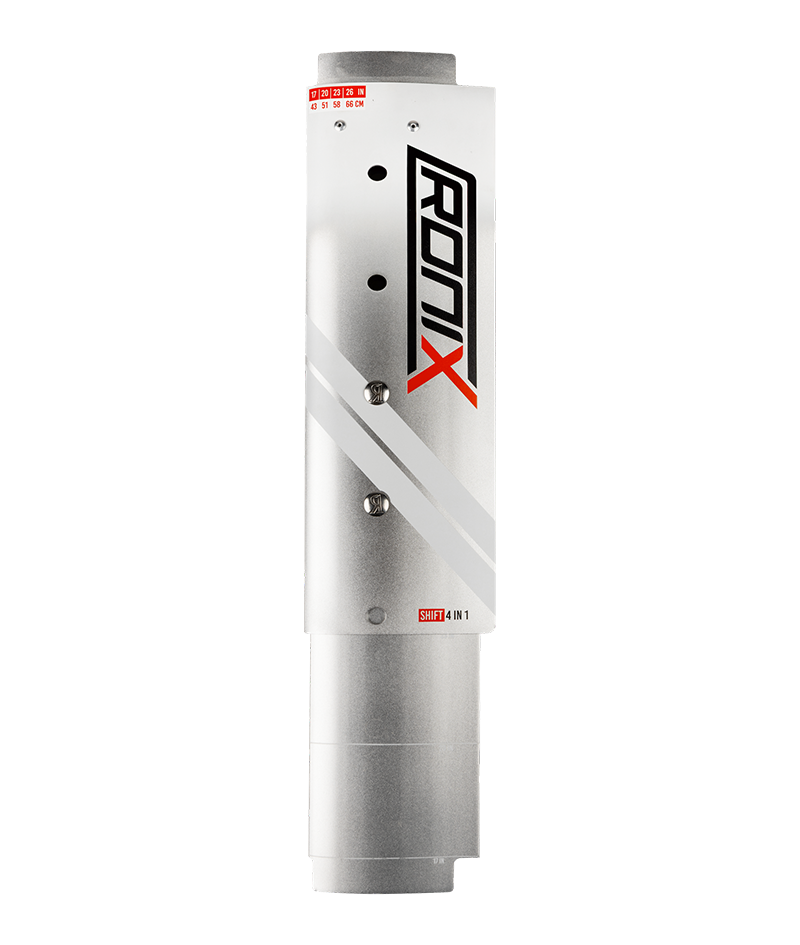

SHIFT MAST
17” | 20” | 23” | 26"
4 LENGTHS IN 1 - FOILING GOT EVEN FUNNER AND EASIER
Finally, a setup that makes foiling fun and easy. Four varying mast heights to learn the progression of flight with. The first of its kind where the mast will adapt to your ability. For several decades people have experienced the feeling of flight. Hard to beat the sensation of levitating a couple feet from the water’s surface. The hurdle has always been that a taller mast is more exhilarating, but also infinitely harder to learn on. So, we changed that. We created and patented the world’s only telescoping adjustable mast. The 3 major aspects of foiling are learning to deep water start, turn, and interact with the wave - now you can have 1 mast that will progress through these stages. 4 options in 1 to take you through the entire evolution of this amazing sport. New for this year the mast has a 4th adjustment height and extends all the way to 26”.

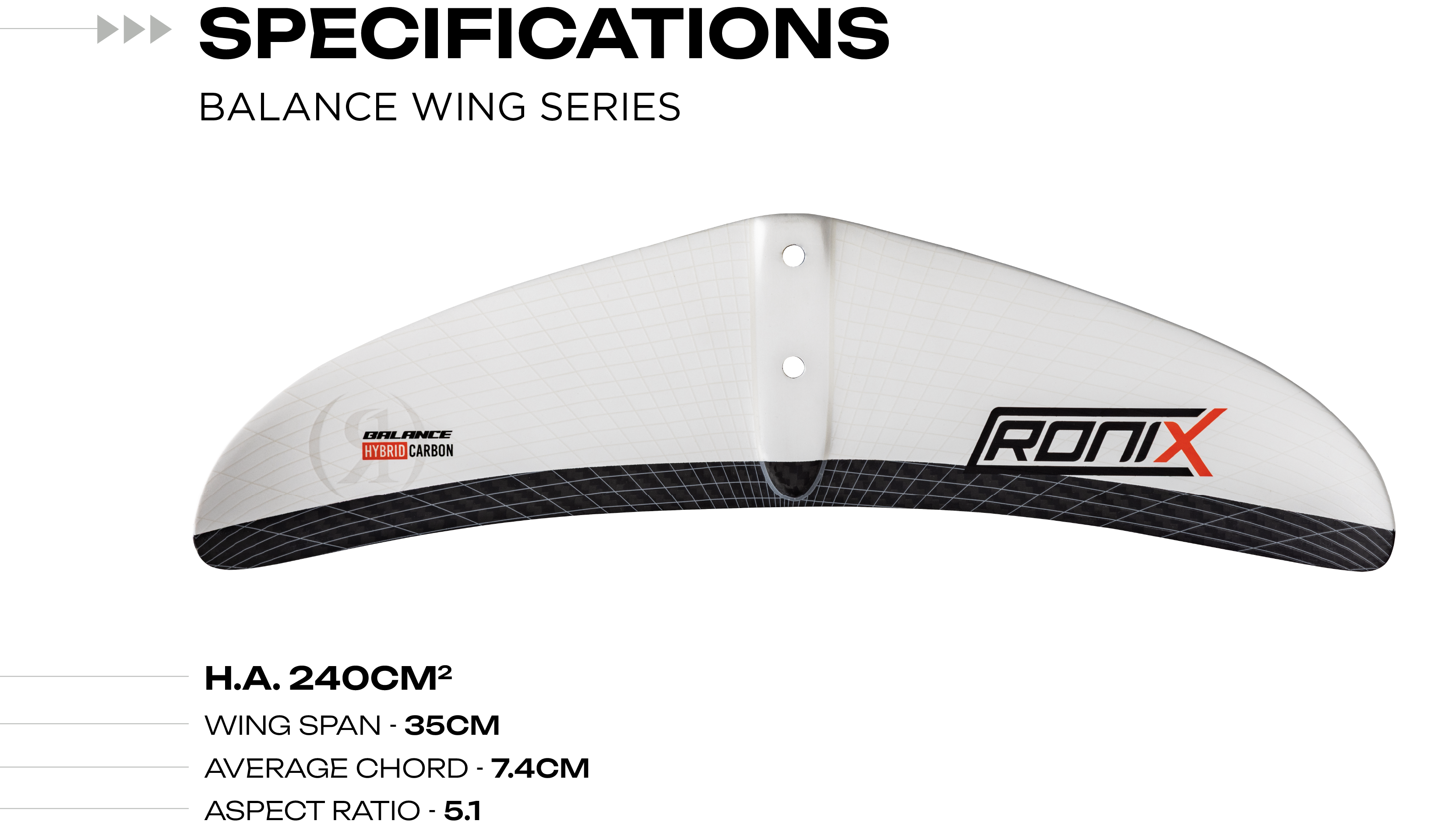

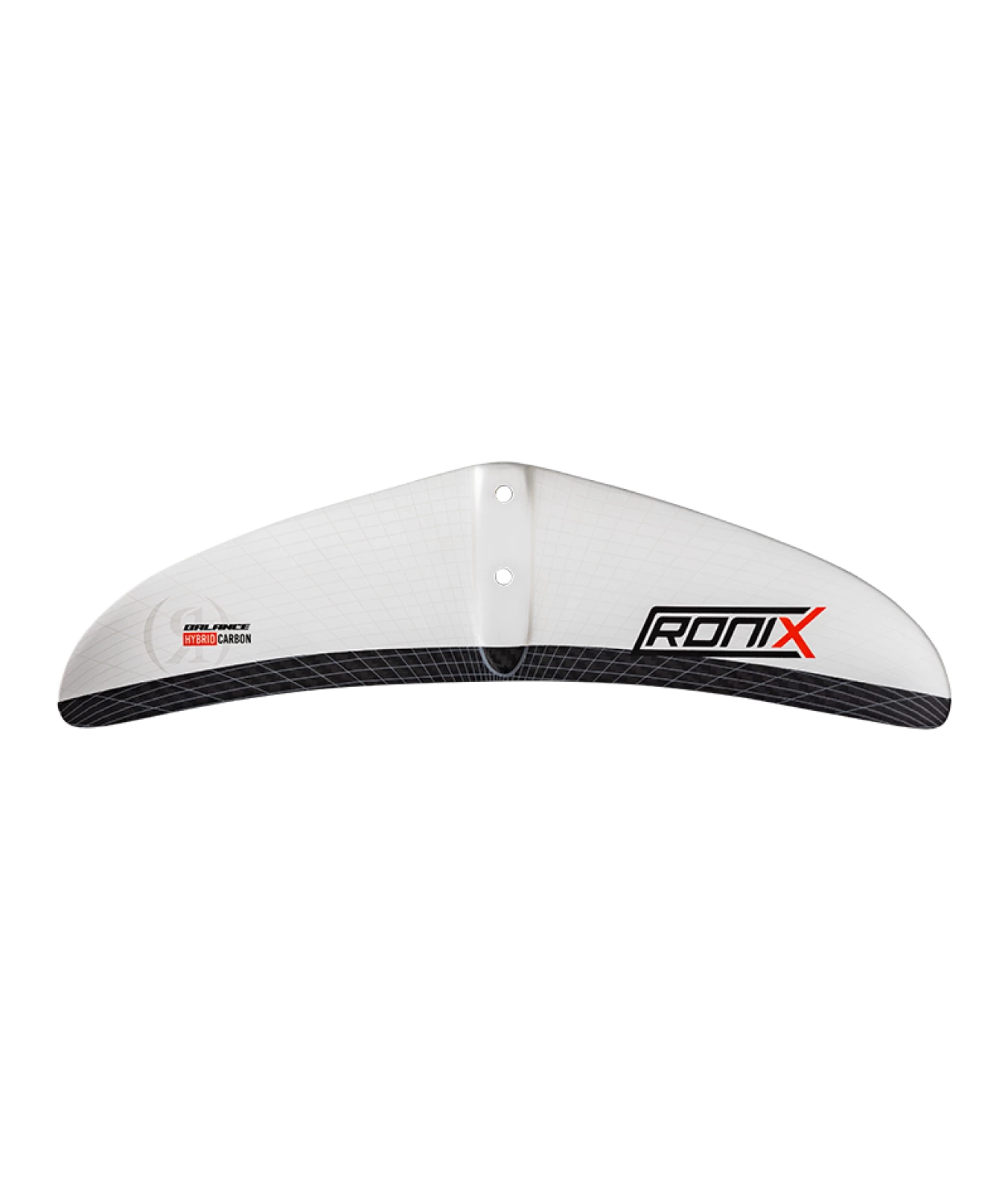

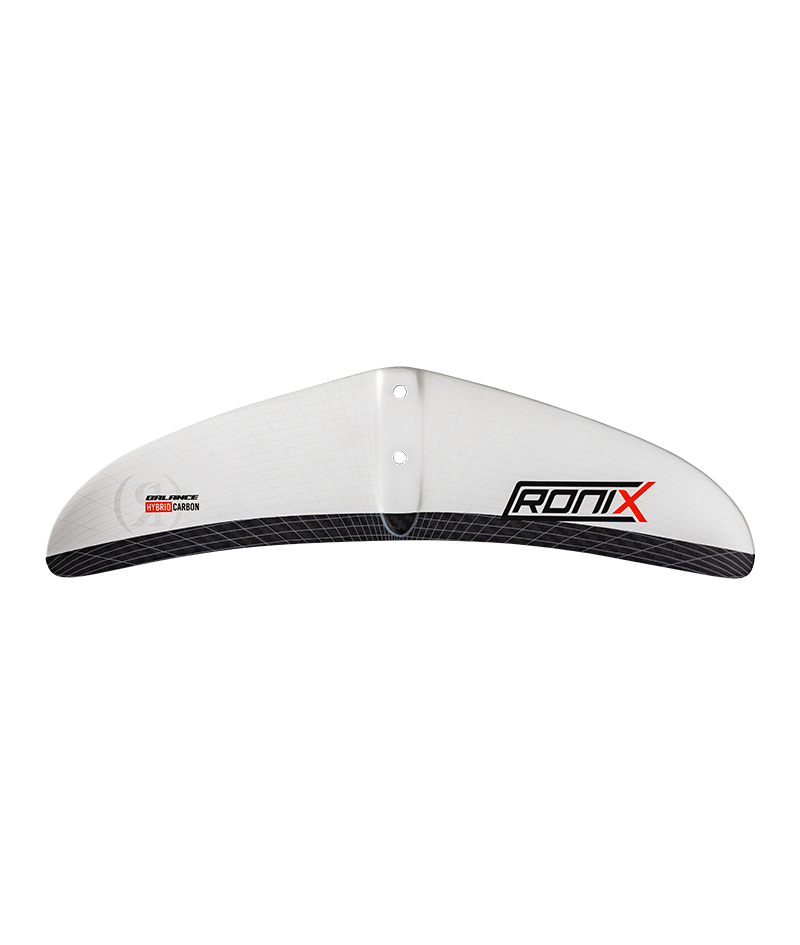

BALANCE REAR STABILIZER
240cm²
A CO-PILOT WITH A CONSCIOUS
The voice of reason mounted on the back of your Link Fuselage is there to conduct your voyage as you navigate the seas. A low temperament design that helps steer the ship and bail you out of a jam when off axis. The perfect amount of grip for those new to foiling – yet still has enough speed to transfer on the second wave. A wider base, added rake, slightly thicker profile, turned up winglets and our signature autoclave construction. The Balance wing puts an emphasis on lift and grip. The two hardest aspects of learning how to foil are generating a consistent lift while you learn how to pump and maintaining stability as you learn how the nuances of turning. Phenomenal beginner stabilizer? Most definitely. But also preferred by high end riders that want a little extra lift and stability on the back of their sleek High Aspect front wing. A proven low temperament design.
SPECIFICATIONS
WINGSPAN - 35cm
AVERAGE CHORD - 7.4
ASPECT RATIO - 5.1

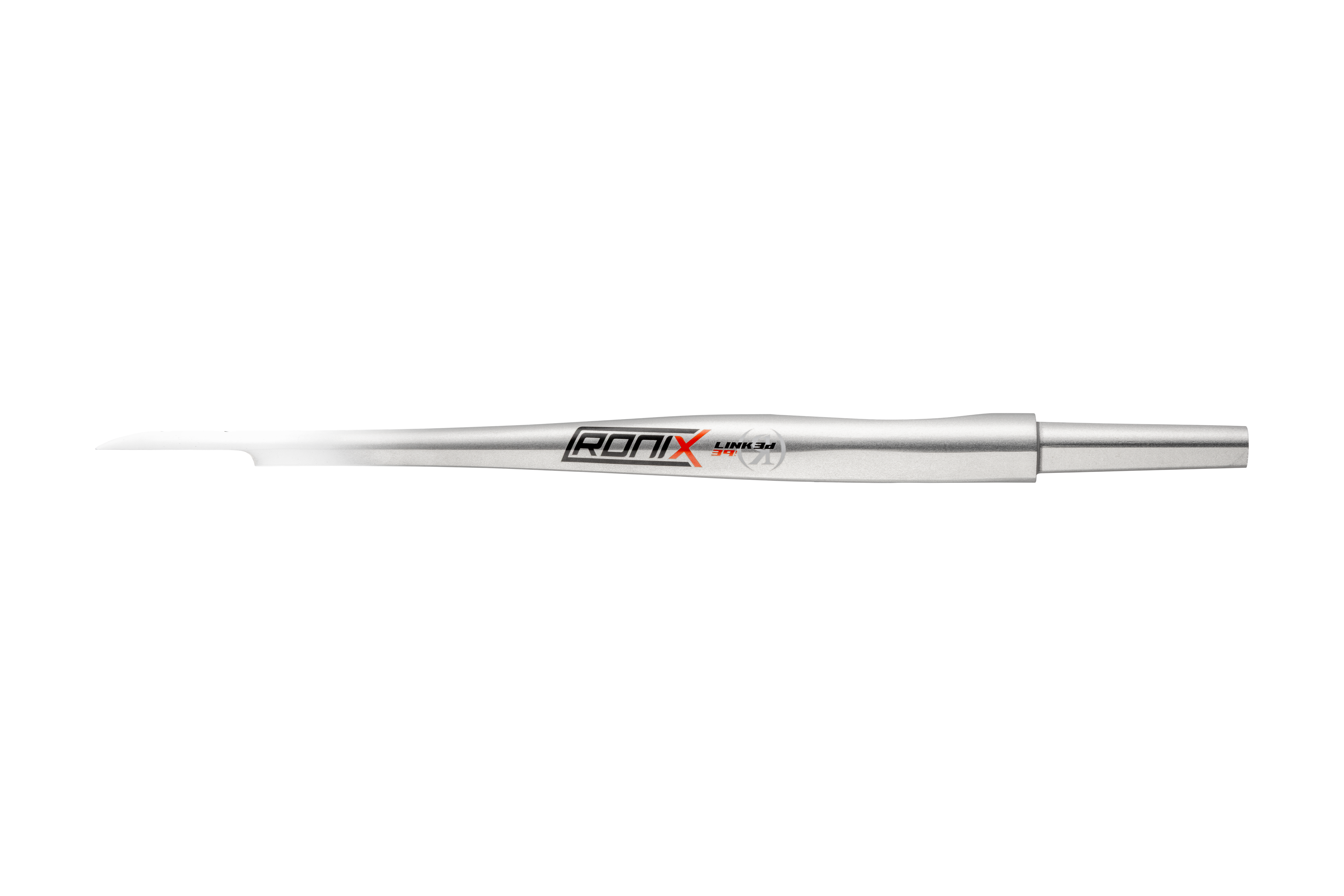

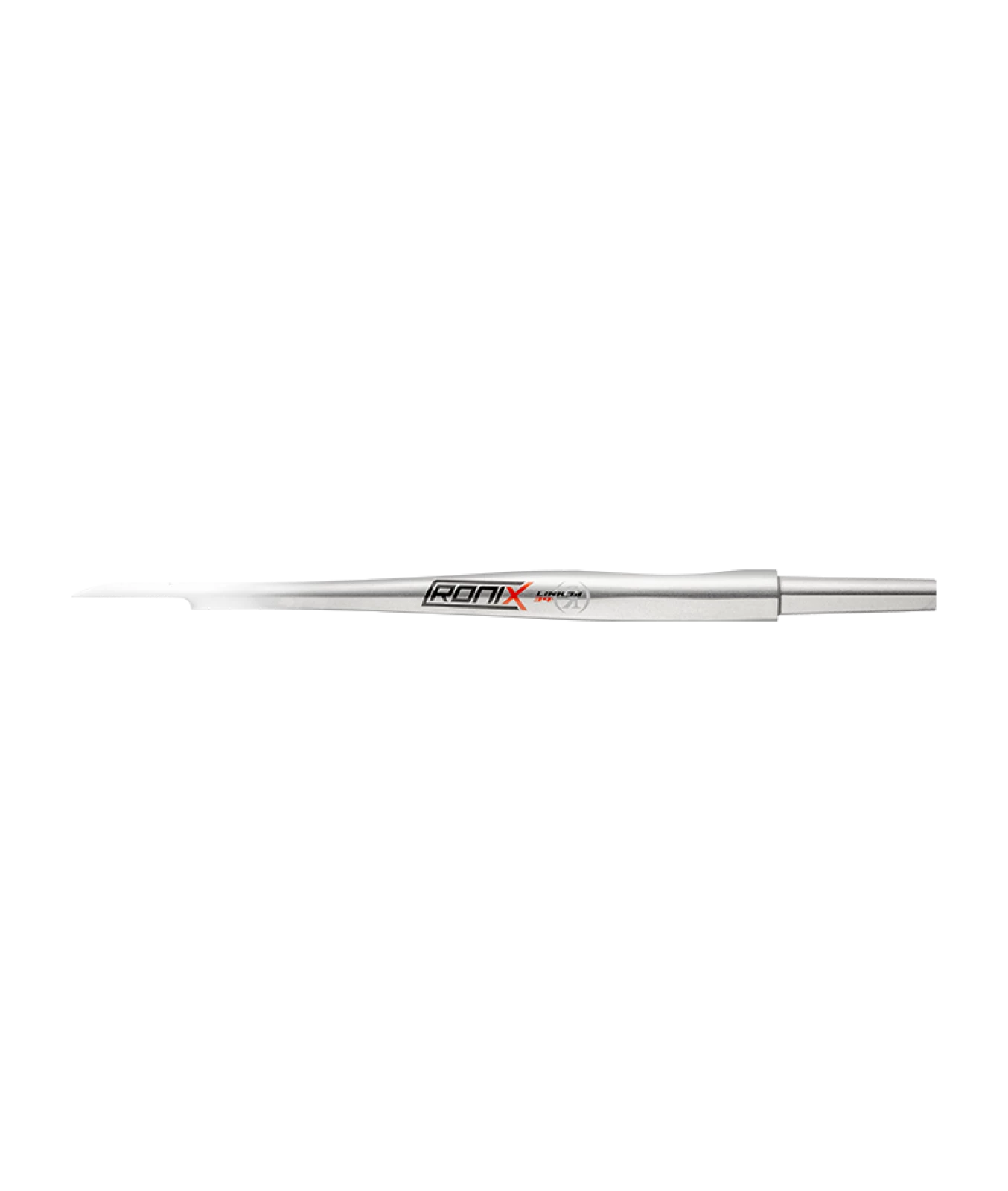

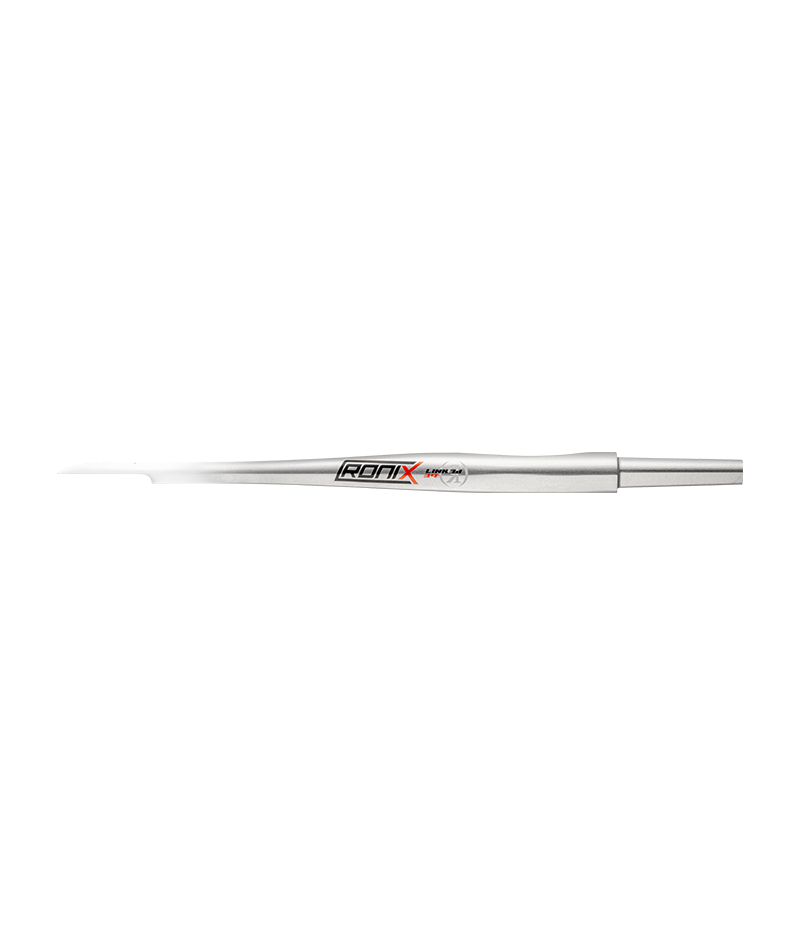

LINK 3D FUSELAGE
39cm
SOLID CONSISTENT RHYTHM
The Link 3D is the intersection to the mast, front wing and rear stabilizer with perfection in every nuance. Each fuselage starts out as a high-grade alloy in the shape of a long brick and is then milled on a 3 axis CNC machine to the exact dimension for the perfect fit between the connection points. This streamlined conical design achieves the highest marks of anything we have ever tested in rigidity and water efficiency. A strong efficient link is in many ways the driving force to a smooth predictable foiling experience.
VERTICAL STABILIZER
26cm²
FOILING WILL NEVER BE THE SAME - OR AS DIFFICULT
Several years ago we took a sport that was labeled hard and made it easy with the world’s only adjustable mast. Now we are doing it all over again - this time with the only vertical stabilizer. This new patent pending invention will conveniently slide on any Ronix fuselage to help control and maintain your flight pattern in a way never thought imaginable.
WHAT DOES IT DO?
We designed this stabilizer to aid the journey of flight and are including this with every complete foil set up that comes with a balance wing. The already dependable shift mast now has a running mate to all but guarantee a quick and easy learning experience. But then we realized once you have progressed from our hybrid carbon balance series doesn’t mean you are out of the foiling challenges. Short boards, tall masts, and big front wings are so much fun to ride – but bring about a new abrupt take off that can be hard to control even for riders with a lot of foiling experience. Once a rider feels they have that foundation – the stabilizer can easily slide off to bring out the full personality of our foil setups.
WHO IS IT FOR?
Ever flown on a plane without a vertical stabilizer - why should your journey into foiling be any different? This vertical stabilizer slows down your take off and locks in your turn. Now a rider will have more of a controlled pitch deepwater start and an easier to navigate rolling style turn vs. the more experienced yaw style arc. Once a rider feels they have that foundation – the stabilizer can easily slide off to bring out the full personality of our foil setups.
SUMMARY
A commitment to the new era in flight continues. Whether you are a new rider looking for every advantage to your journey – or an intermediate rider looking to step into an advanced series the vertical stabilizer is an easy add on that will greatly change your experience. The world’s only vertical stabilizer that will easily slide on any Ronix fuselage to help control and maintain your flight pattern in a way never thought imaginable. Short boards, tall masts, and big front wings are so much fun to ride – but bring about a new abrupt take off that can be hard to control even for riders with a lot of foiling experience. This stabilizer slows down that take off so a rider will have a much smoother transition start. Then, once you are riding, this stabilizer will act as a center fin locking in with every turn. Now a rider will have more of a controlled pitch and an easier to navigate locked in turn. Once a rider feels they have that foundation – the stabilizer can easily slide off to bring out the full personality of our foil set ups.

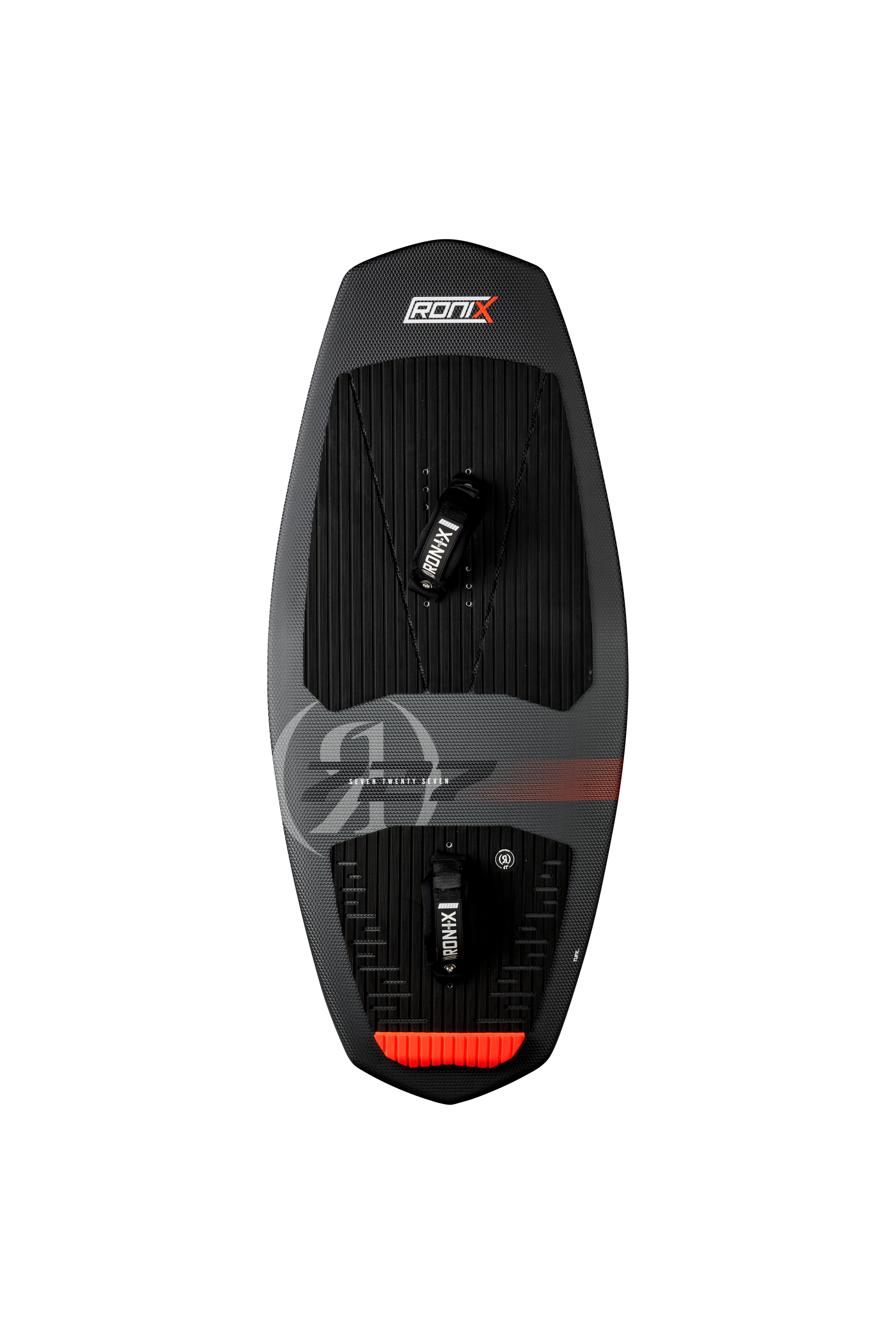

727 TUFF TECH FOILBOARD
3'8" / 4'1" / 4'8"
THE FOUNDATION TO A PROPER FLIGHT
The perfect shape for somebody new to foiling that wants that stable, neutrally balanced riding style. A very consistent, medium-tempo, thin-profile board that will always have you in control. Available in 3 sizes - this shape and construction will have you in a stable backseat position always feeling comfortable with your flight while the straps that are included help with deep water starts. Our most stable shape the 727 is the perfect counter to our Balance series collection blending the learning curve, to mid/high level performance. A thin profile bulletproof construction wrapped in our Surface Skin that helps break up the water on landings. Complete with an exaggerated bevel outlining the board to help disperse water as the board touches down. Last but not least - high end riders rejoice you now have an affordable option with straps to master your aerials.
Construction – TUFF TECH
Riding Level – ALL LEVELS
Thickness - THIN
Rail - FULL
Pad - BLENDED GROOVED EVA
FEATURES
+ 10” track length with industry standard 3.5” width between tracks
+ Foil Specific Design – all attributes of the rocker, bevel, profile, and swing weight were designed specifically for foiling
+ Tuff Tech Construction – Made from our popular Koal Classic core and then wrapped in super tough Surface Skin
+ Blended EVA Traction Pad – A compound made from both foam and rubber with machined grooves for a softer feel and the best grip in foiling
+ Footwear – Adjustable foot straps are included for easier deep water starts and for airs
+ Inserts – 3 stance options for both your front and rear foot
+ Handmade by Robots – Every 727 foilboard is made from a machined core to the exact tolerance we spec’d out
+ Lava Resin – Made from a high temp resin to withstand extreme heat
For many foiling is H2O utopia and the Stairway to Heaven is the perfect start.
Board Size Chart
LENGTH (FT/IN) | SIZE (LTRS) | ROCKER (IN) | MAX WIDTH (IN) | INTERMEDIATE WEIGHT RANGE (LBS) | ADVANCED WEIGHT RANGE (LBS) |
3'8" | 13 | 2.3" | 20.5" | UP TO 160 | ALL SIZES |
4'1" | 14.8 | 2.4" | 20.8" | UP TO 180 | ALL SIZES |
4'8" | 19.8 | 2.5" | 21.3" | 160+ | NOT RECCOMENDED |
Also Includes

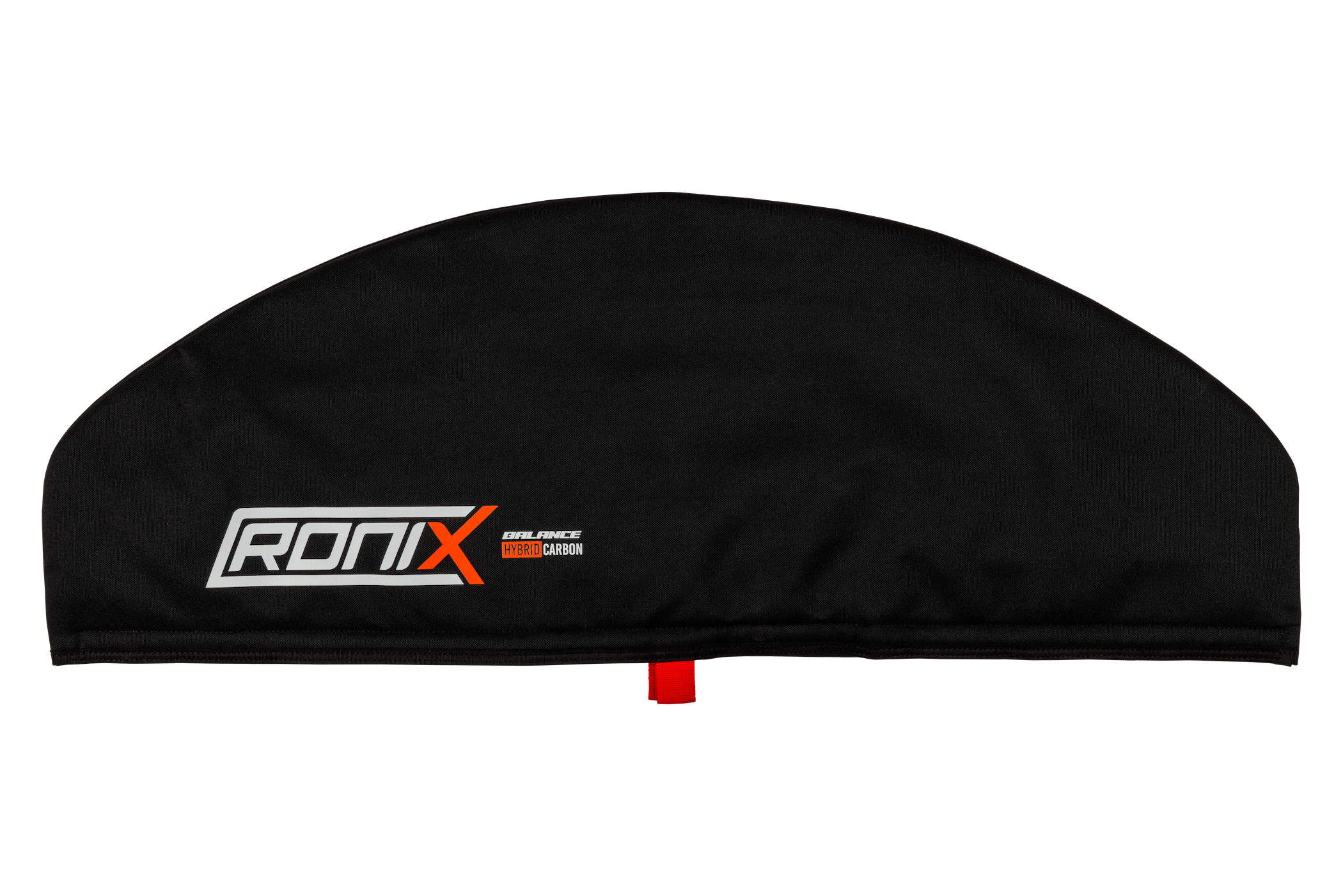

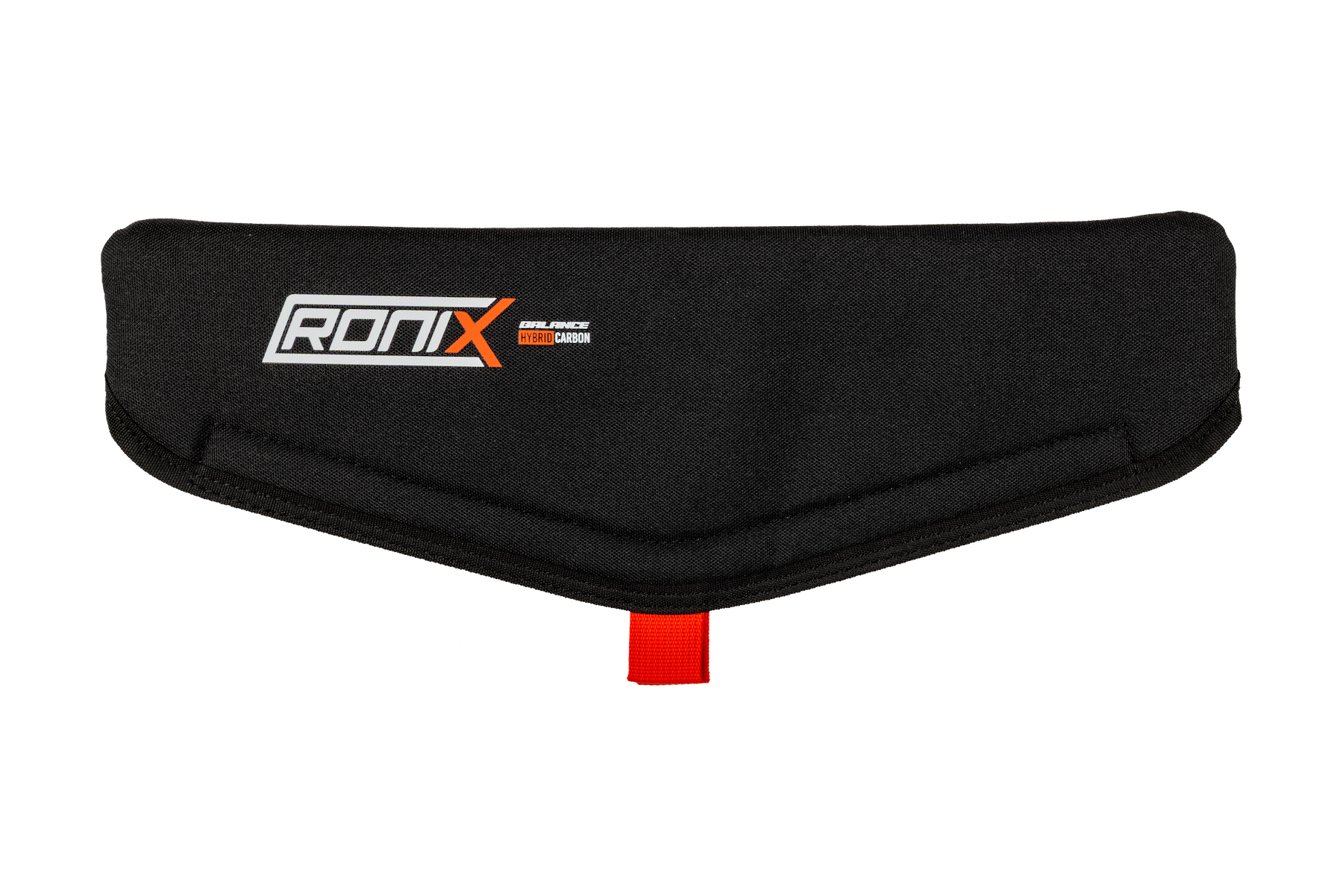

Board Straps | Balance Front Wing Neo Sleeve | Balance Rear Stabilizer Neo Sleeve |

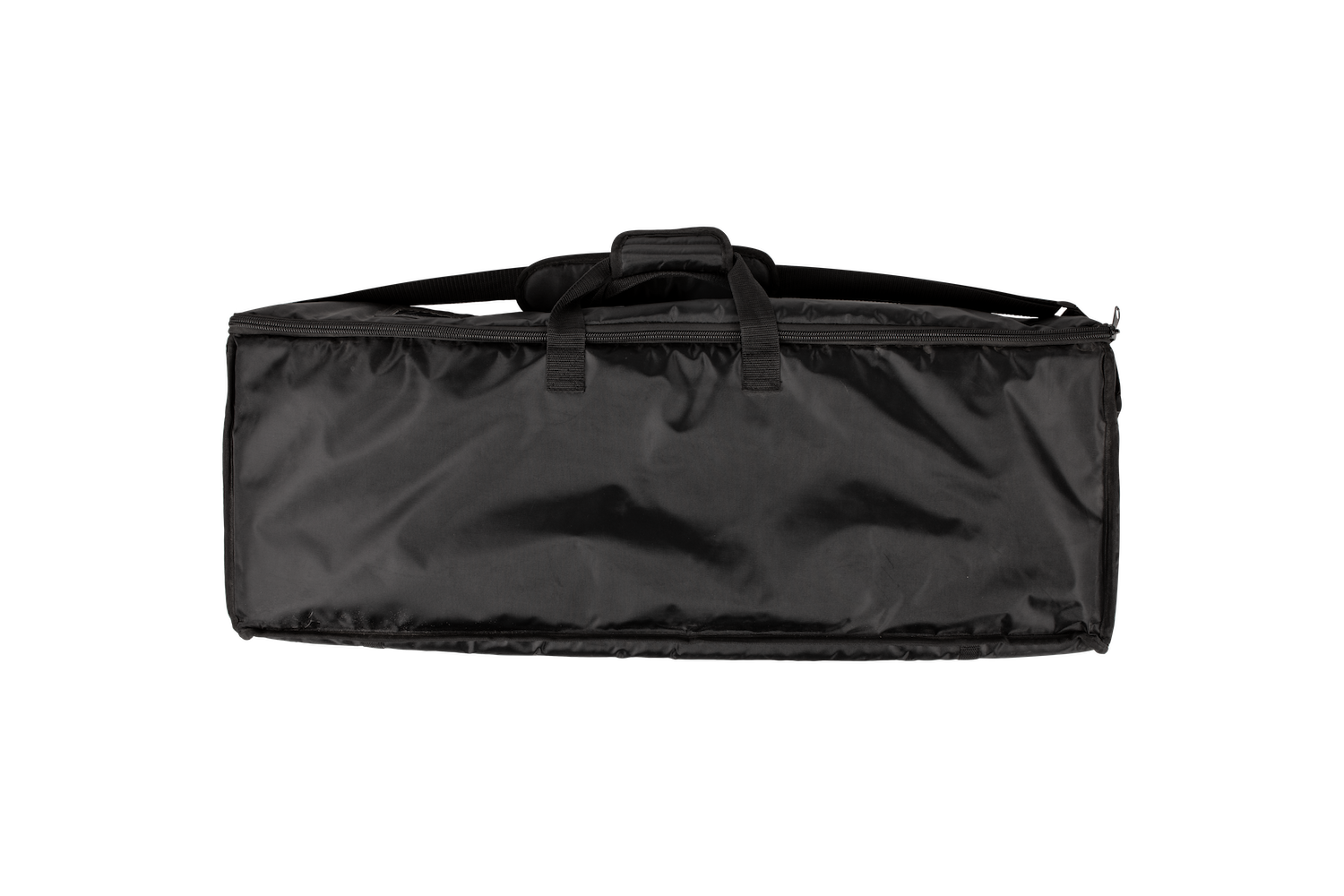

Padded Foil Kit Bag | Mast Top Plate | Hardware Case |
Hardware | +1° Shim & -1° Shim | T Handle Tool |
Anti-Seize Grease | Fuselage Tip Protector | Foil Sticker Sheet |
ASSEMBLY
This is the order we encourage you to assemble your foil kit.

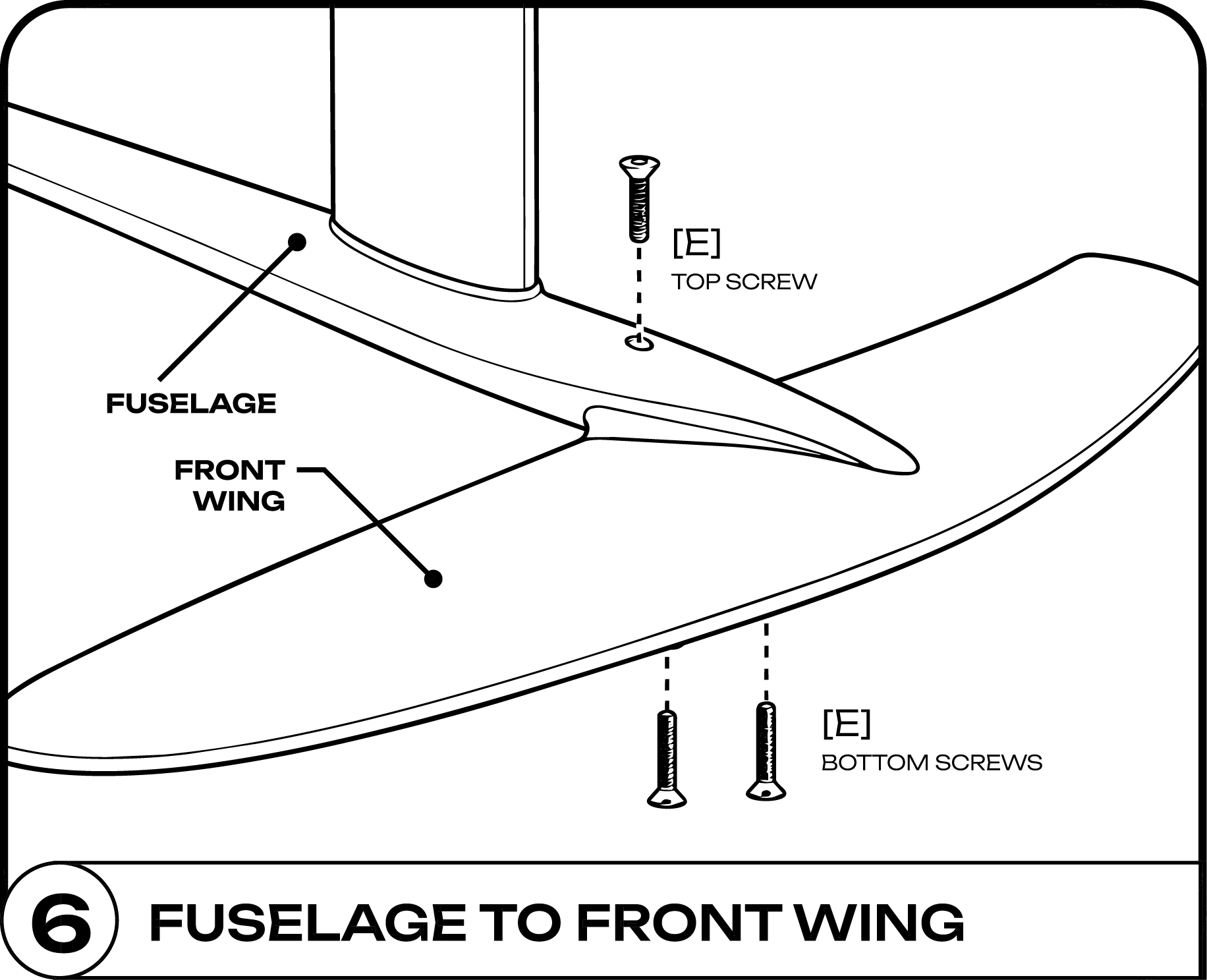

1. Slide fuselage into front wing - tighten all 3 (A) screws.

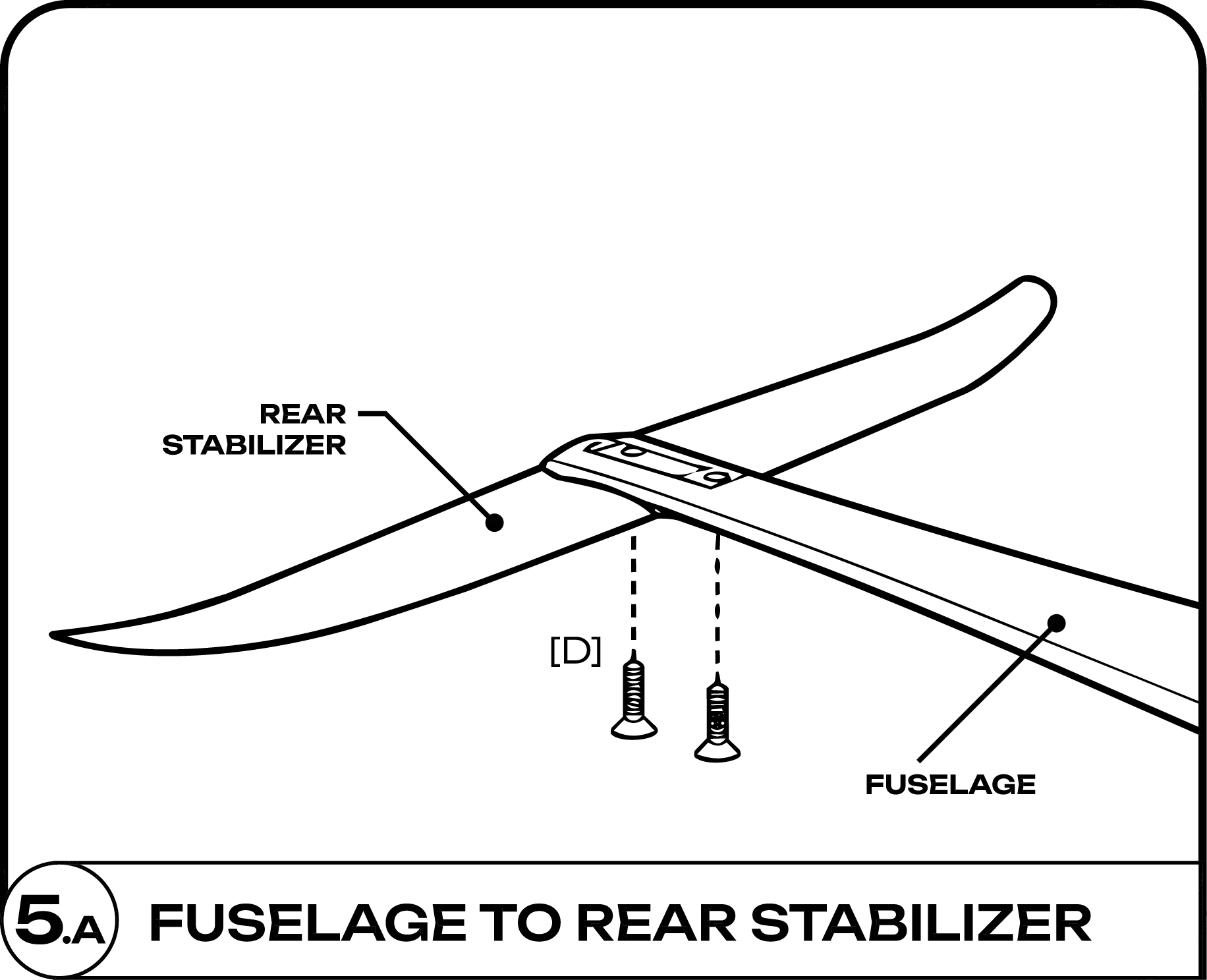

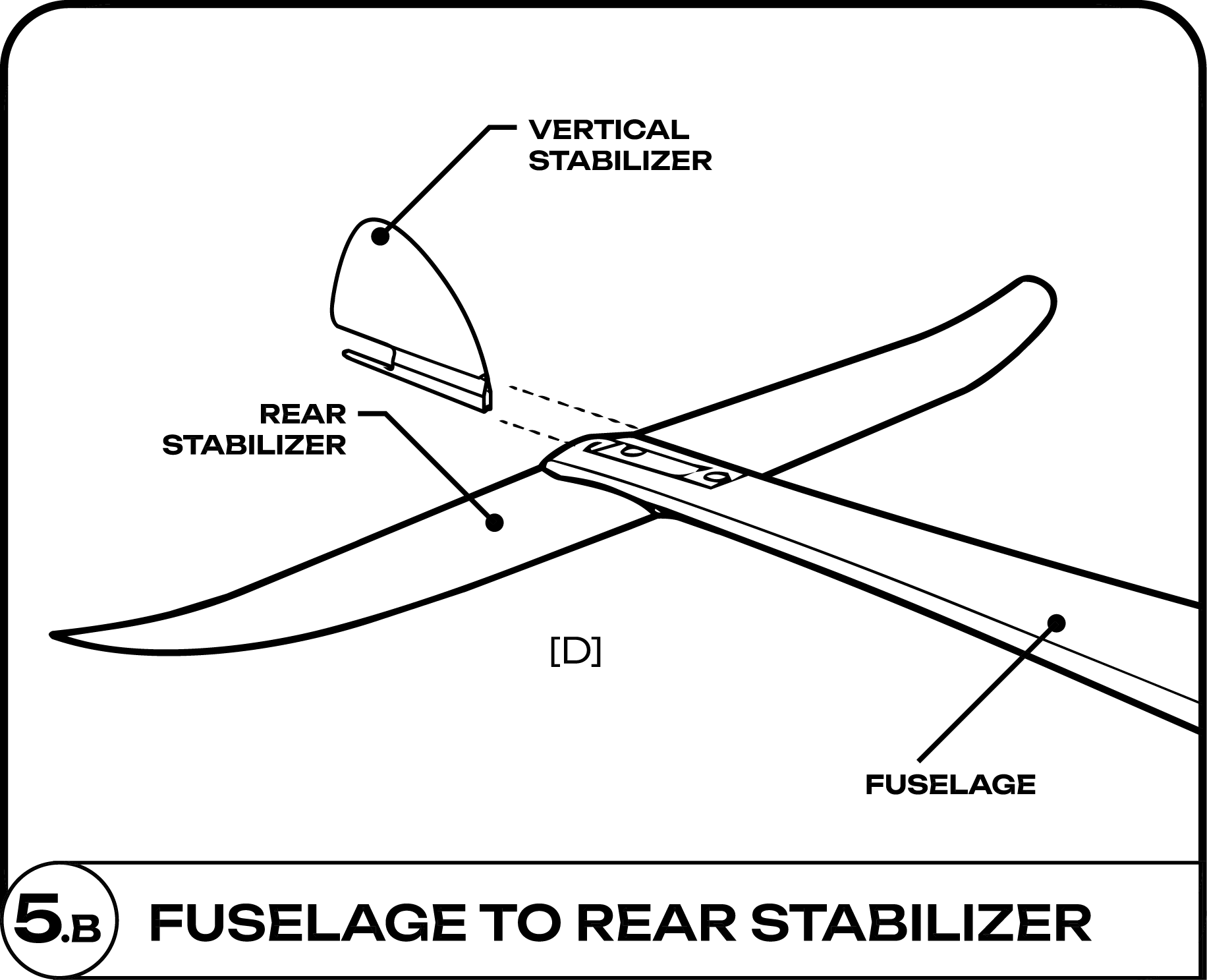

2. Overlay fuselage onto rear stabilizer - tighten both (D) screws. If you want to use the vertical stabilizer loosen the 2 (D) screws and the stabilizer will easily slide on in between the fuselage and the rear stabilizer. No additional hardware is required.

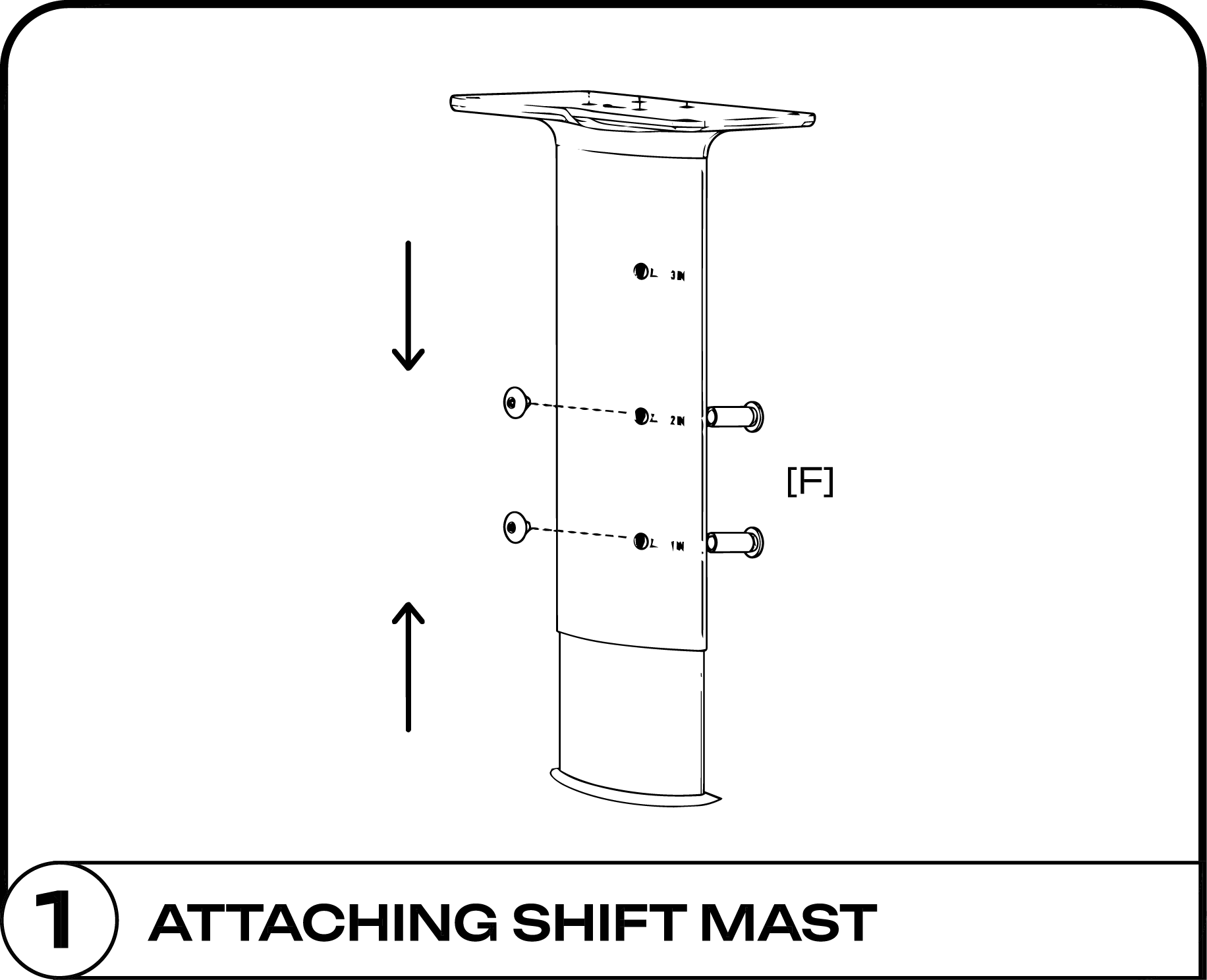

3. *Determine desired mast height - place both (B) inserts so that they go through both pieces of the adjustable mast - tighten (B) screws into inserts.

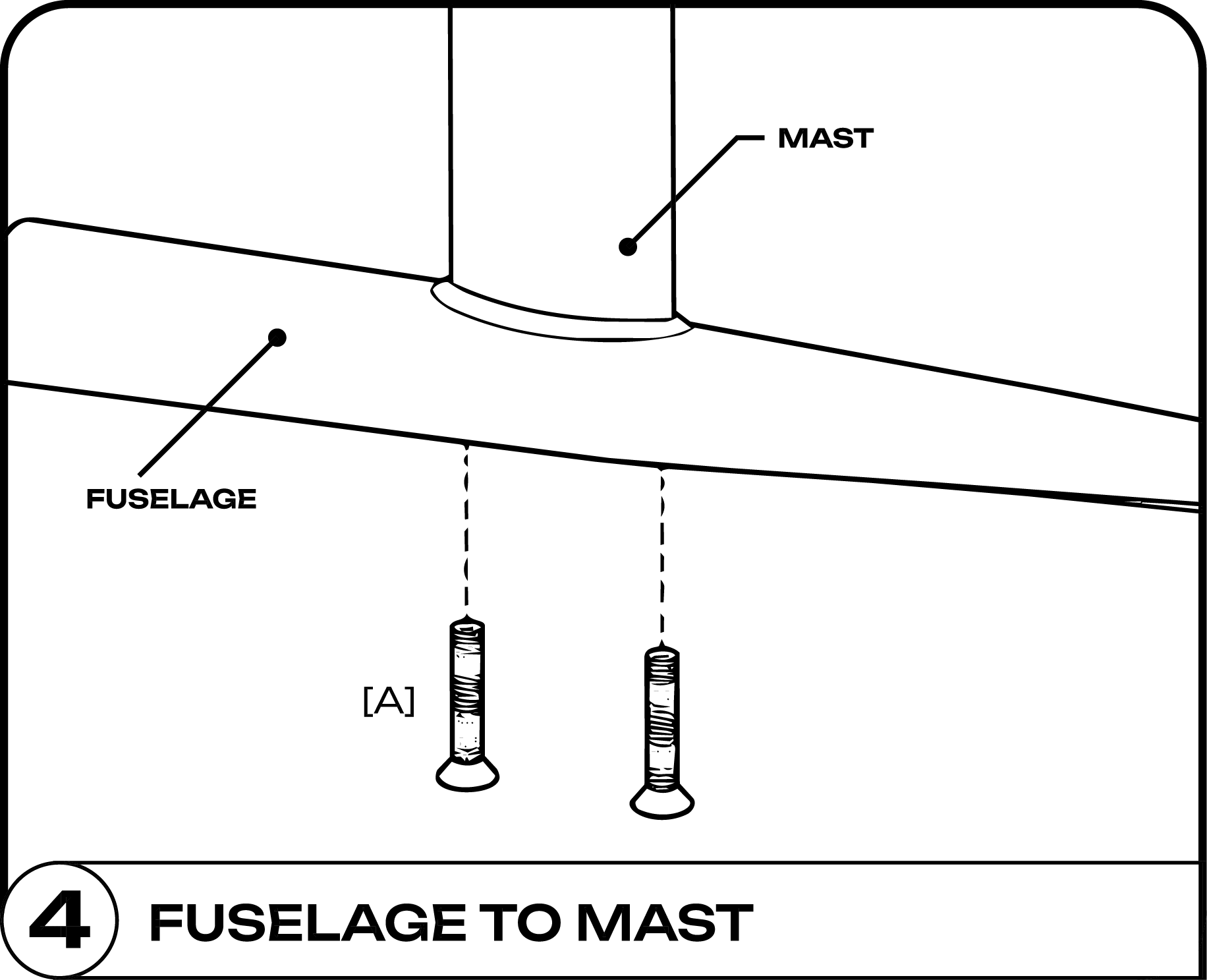

4. Insert mast into fuselage - tighten 2 of the 4 (E) screws.
5. Insert mast into mast top plate - tighten remaining 2 of 4 (E) screws.

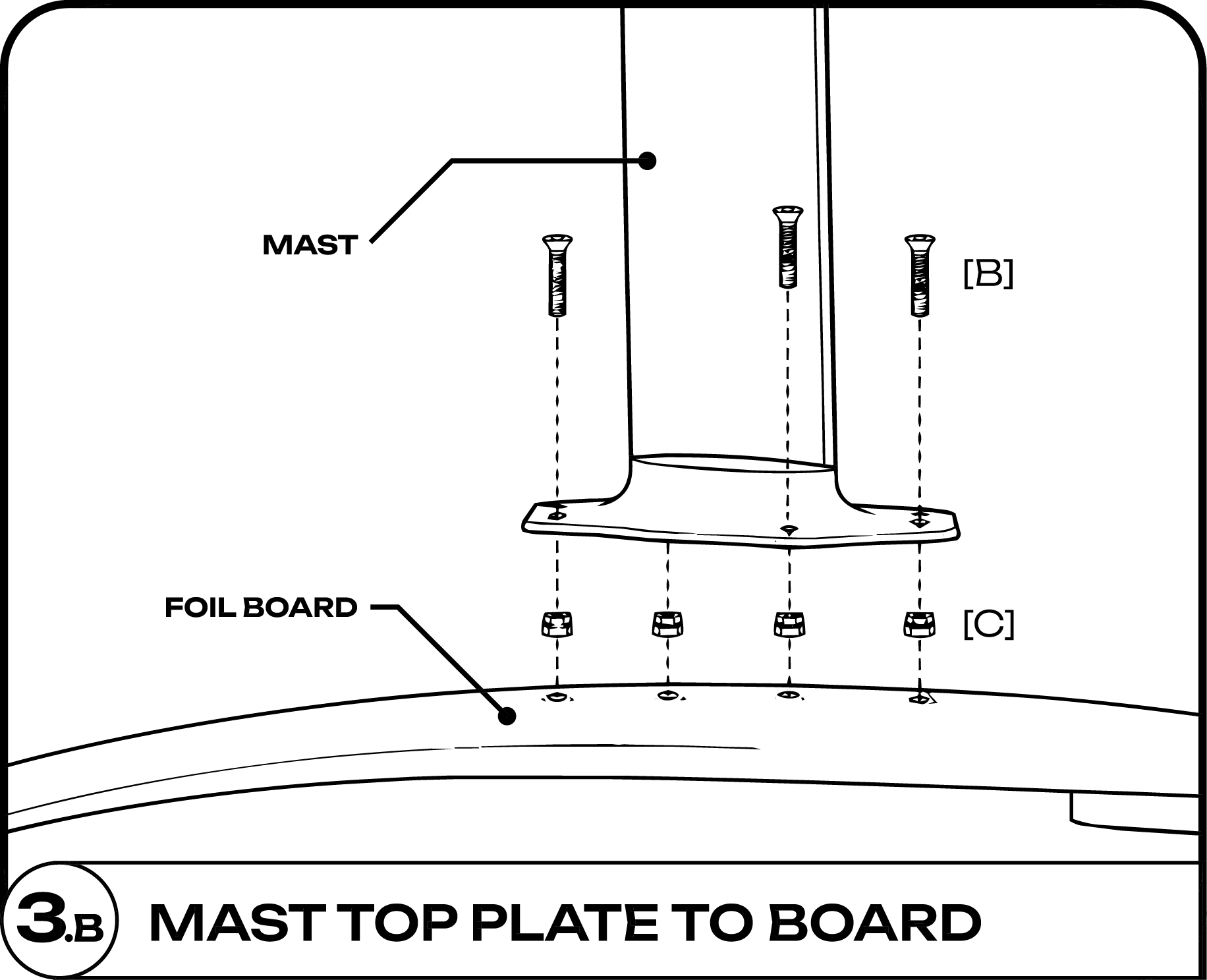

6. Slightly attach all 4 foil board track screws (C) into the track inserts (C).
7. Place 2 track insert/screws (C) into left track, place remaining 2 insert/screws (C) into right rack. Slide one set all the way up the track, and the other set all the way down the track.

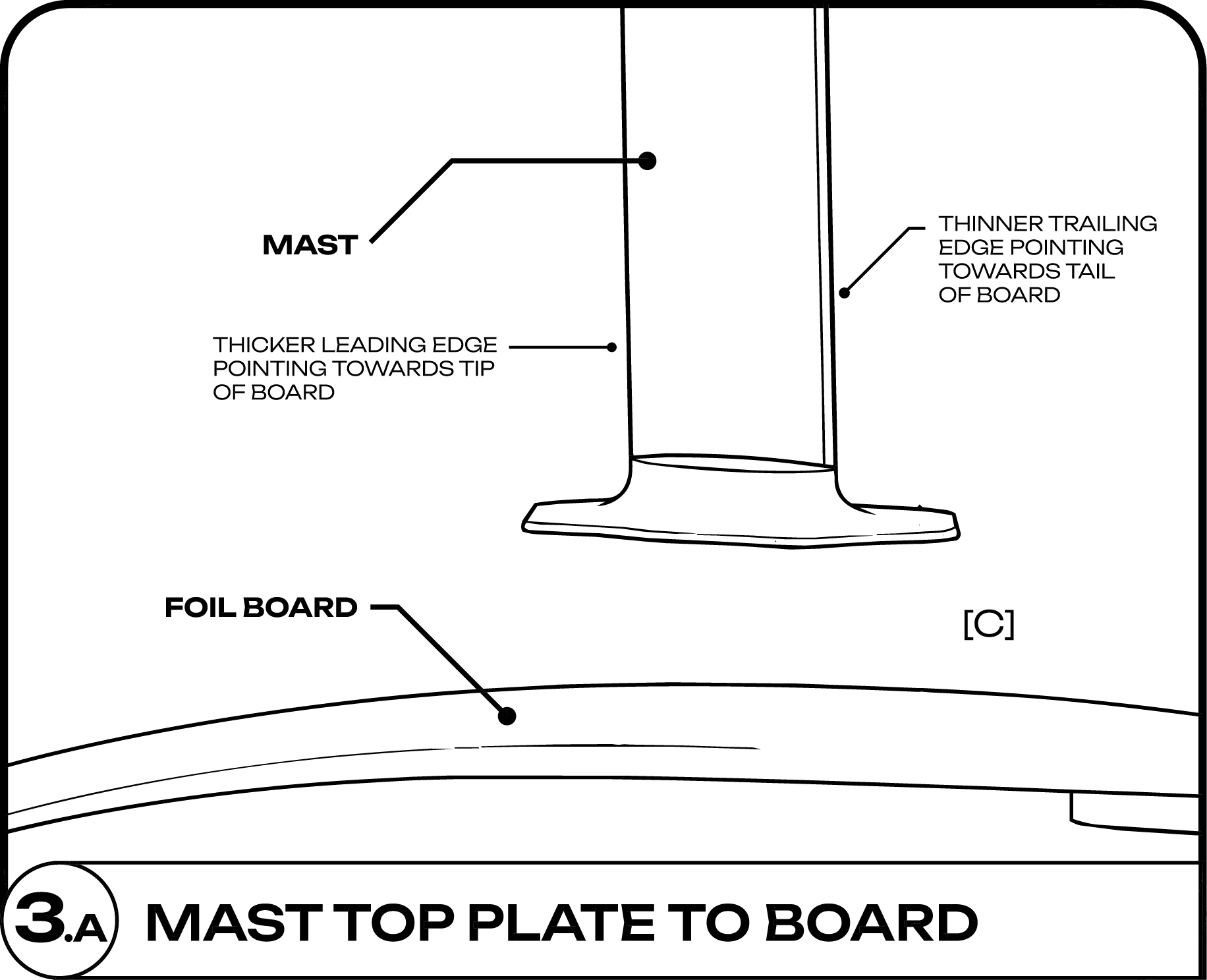

8. Place mast top plate on to board so that the track aligns with top plate grooves.
9. Slide all 4 insert/screws (C) into top plate grooves - and proceed to tighten.
10. If you are unsure of where to place mast top plate, start with the mast top plate as close to the tail of the board as possible, for added stability. As your skills progress, gradually slide mast top plate forward for added lift.
11. Always ensure screws are tightened with every use.
* If you have a fixed 24" or 28" mast, skip step 3.
