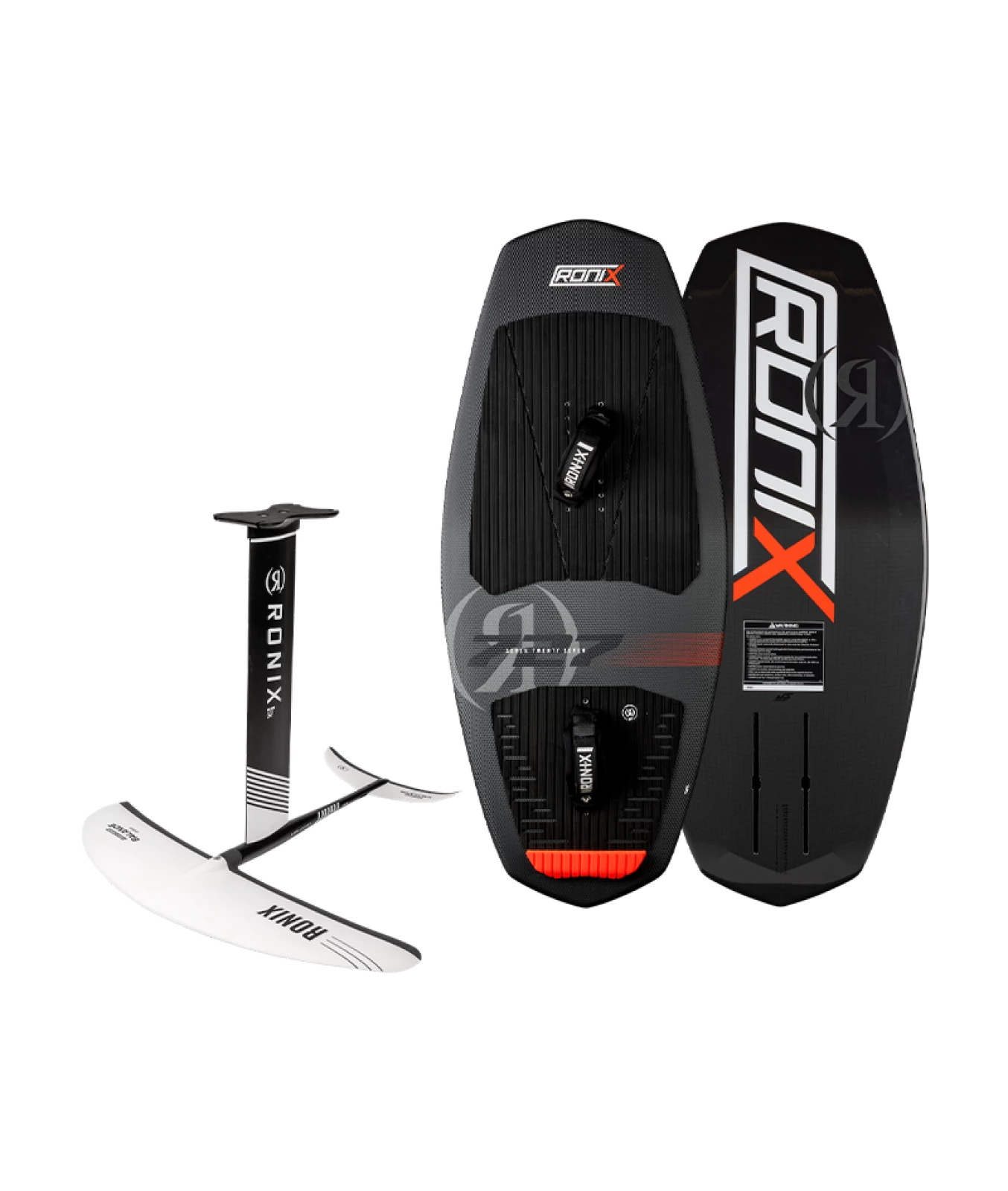

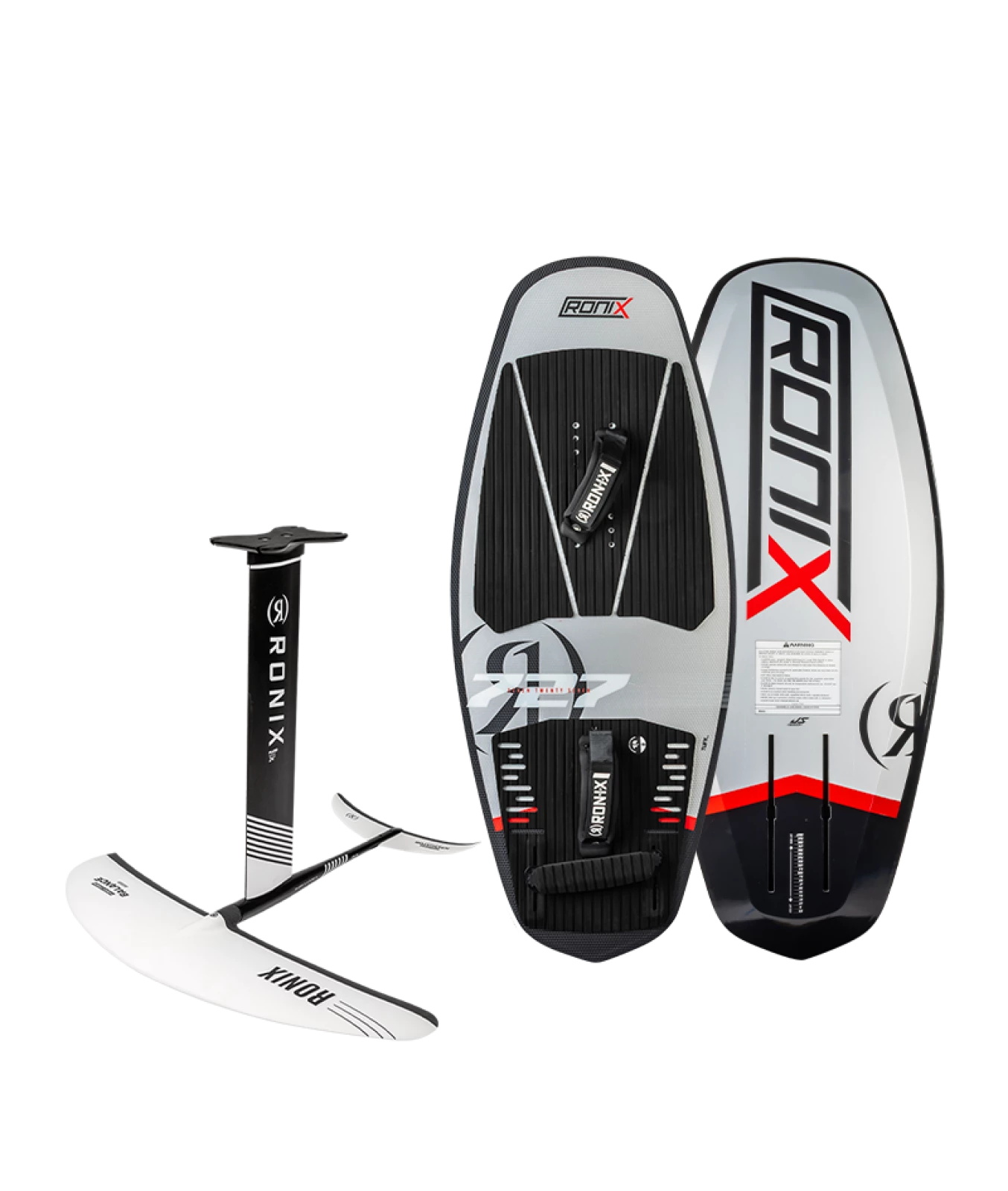

FOIL LIFESTYLE 4

SUMMARY

BALANCE FRONT WING - 1300cm²

BALANCE REAR STABILIZER - 240cm²

FLUID MAST - 24"

LINK 3D FUSELAGE - 39cm

727 BOARD - 3'8" / 4'1" / 4'8"

VERTICAL STABILIZER - 26cm²

ABILITY: INTERMEDIATE

PERFECT SETUP FOR SMALL TO MID-SIZE WAVE

Always there to keep you inline, this mild temperament set up keeps the good vibe train moving by putting you in the right position to succeed. Designed for riders new to foiling all the way up to advanced foilers riding behind a small to mid size wave. The mast is short enough (24”) that coordinated riders can start off with this height of a mast, while still tall enough that you can grow into a solid performer on first and second wave adventures. The Balance 1300 creates a nimble turn that will easily roll over to edge with its elliptical outline and additional width. It will quickly set you in the sweet spot, keep you on your specified flight pattern, and do it with a consistent, stable edge hold. We love the fact that the carbon wing is painted over in white so you can easily see where the front wing is relative to the waterline to help prevent breeching. This Role Model is the bridge between beginner and high-end foil offerings.

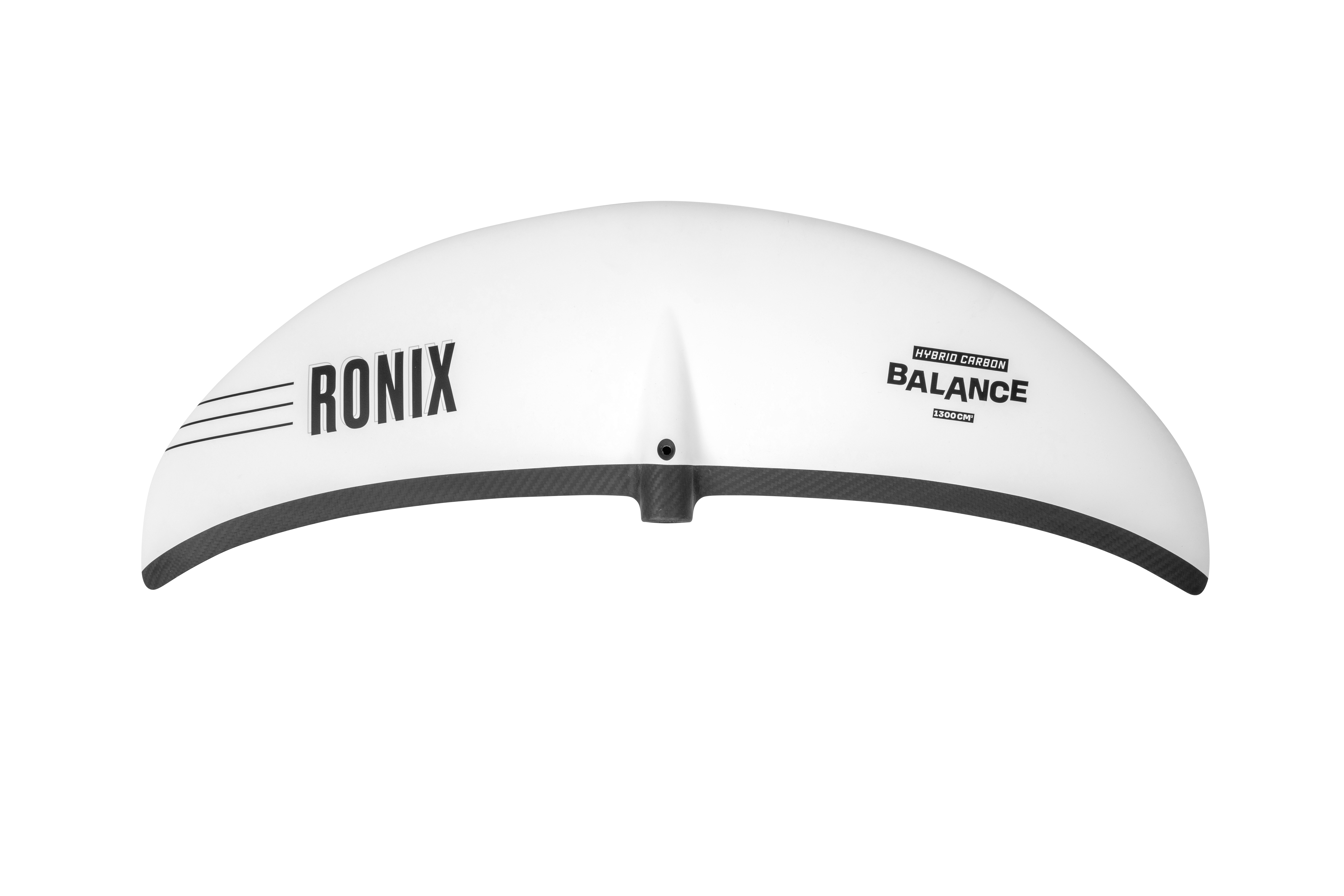

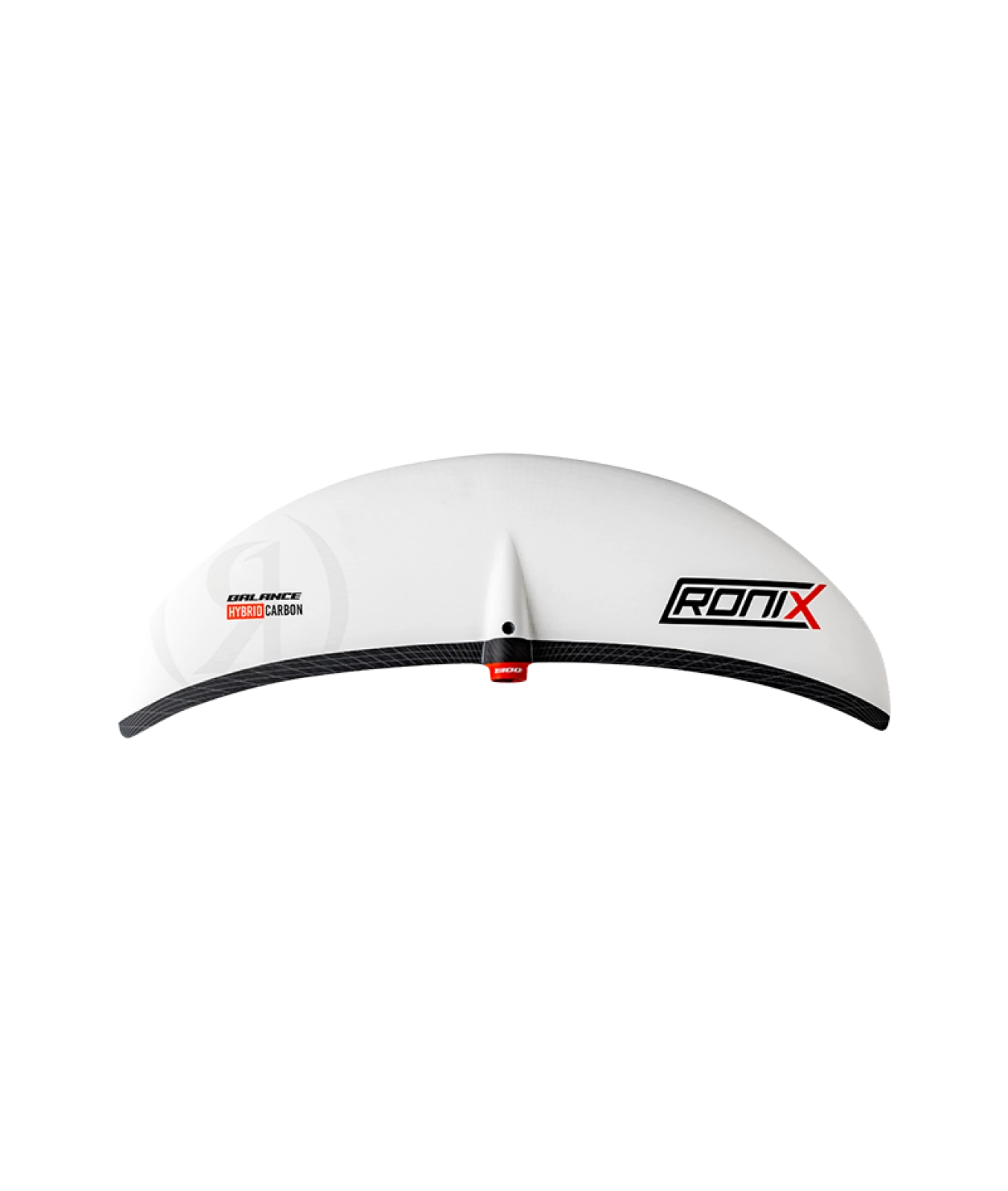

BALANCE FRONT WING

1300cm²



UPING THE ANTE ON CONSISTENCY AND STABILITY

Rhythmic flow of a sequence of movements. A common theme in analyzing foils is getting great drive and lift but having a hard time controlling it. The board will skyrocket to the top, plunge to the bottom, or somewhere in between. This series of wings will ask you what floor on the elevator do you want to reach – and most importantly – keep you there because of our unique twist winglet design. A nimble turn that will easily roll over to edge with its elliptical outline and additional width. It will quickly set you in the sweet spot, keep you on your specified flight pattern and do it with a quicker reacting edge hold. High grade carbon fibers are molded in our proprietary autoclave machine for the cleanest and most exact manufacturing process available in foiling. Then we paint white over the carbon fiber so the rider can have a frame of reference of where they are in relation to the depth of the water.

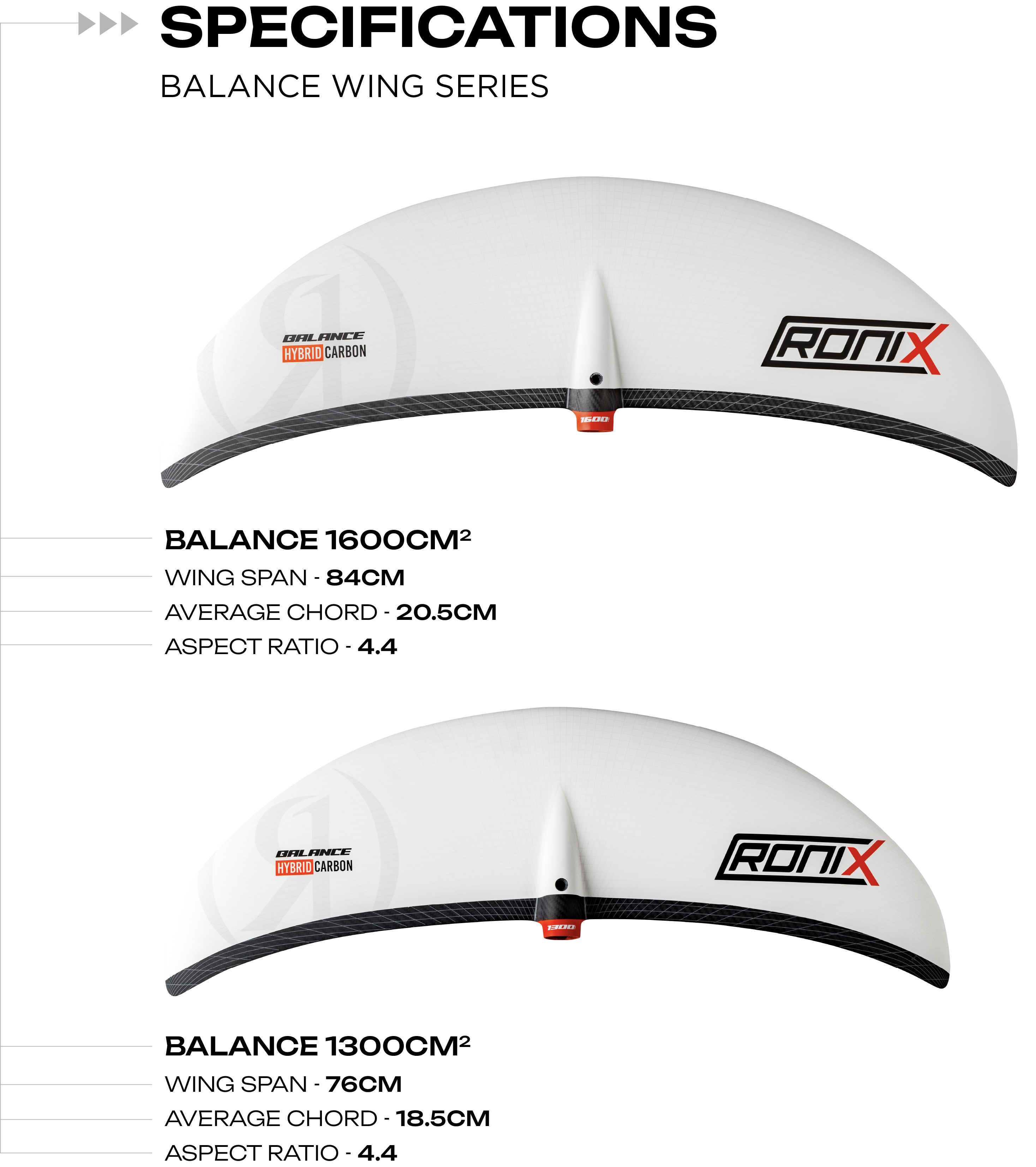

SPECIFICATIONS

WINGSPAN                        - 76cm

AVERAGE CHORD               - 18.5

ASPECT RATIO                    - 4.4

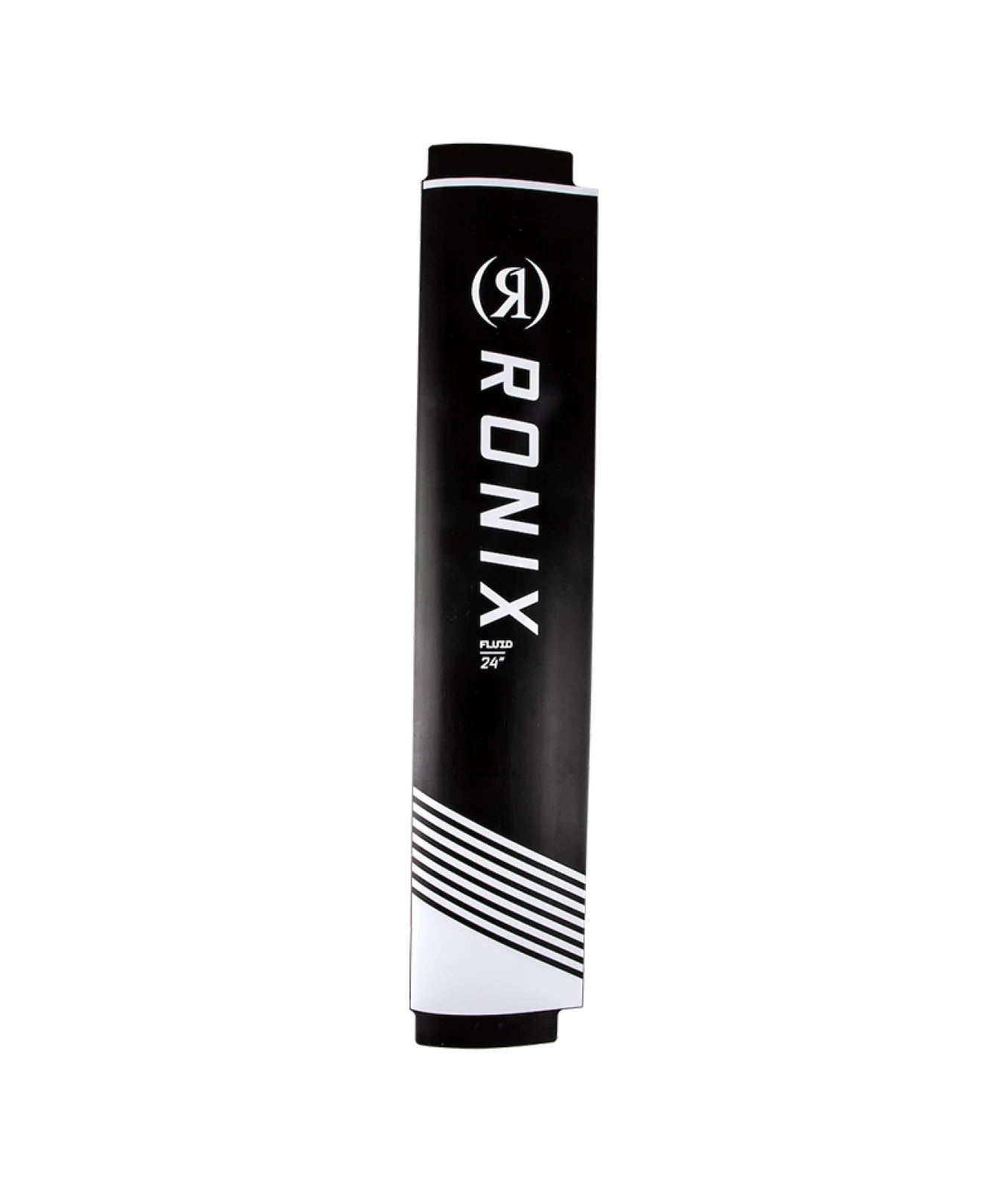

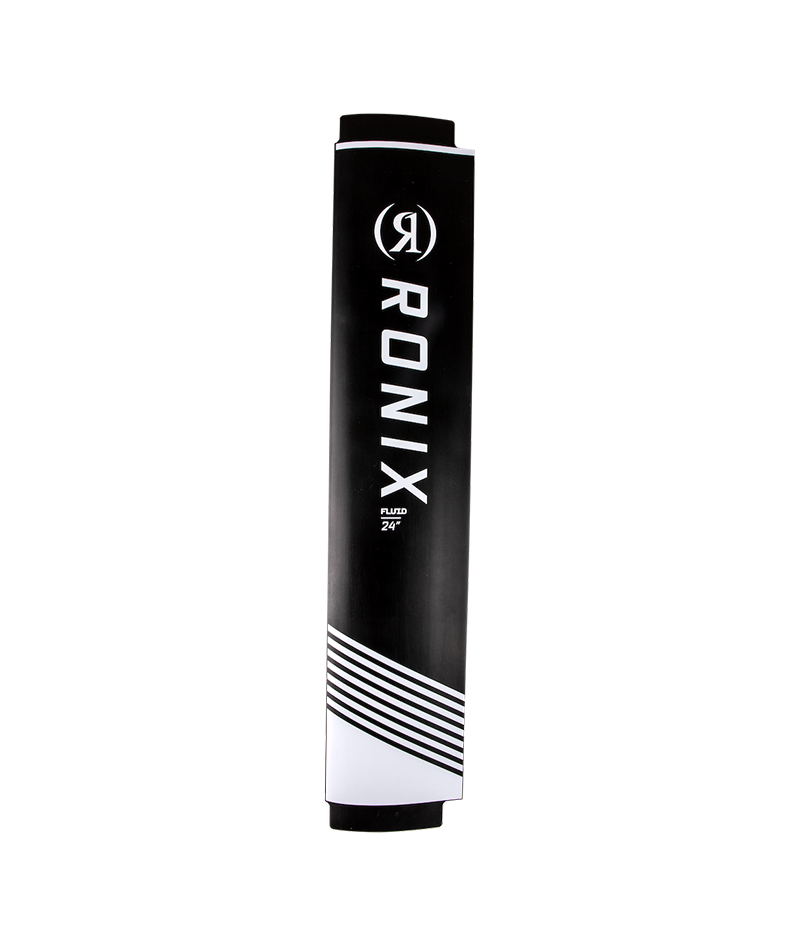

FLUID MAST

24”


A STABLE, MEDIUM TEMPO MAST
Stay high, stay consistent, stay fluid. Speed, lift and travel usually override arguably the most important aspect of your mast – the flow. We have tested a variety of foils in the marketplace. A common theme was feeling the foil setup turning in stages. Each pivot would be good for another “X” degrees until you finally arced through a sectioned turn. We were looking for an effortless turn like you get from ripping powder. A shape manifested with a built-in metronome to keep a consistent, prolonged cadence. The temperament of this mast will see you through the progression of flight all the way to second wave exploration nearly 80 feet from the boat. A fluid session will always have you feeling in control of your ride as you comfortably stand upright in a natural foil position. Don’t let it fool you though -it’s still very much capable of jumping on the gas for a port to starboard wave transfer – just with smooth, linked predictable turns.  The perfect mast height for small to mid size waves - jet skis, pontoon boats, waterski boats, etc that don't churn water as deep as the bigger wake boats.

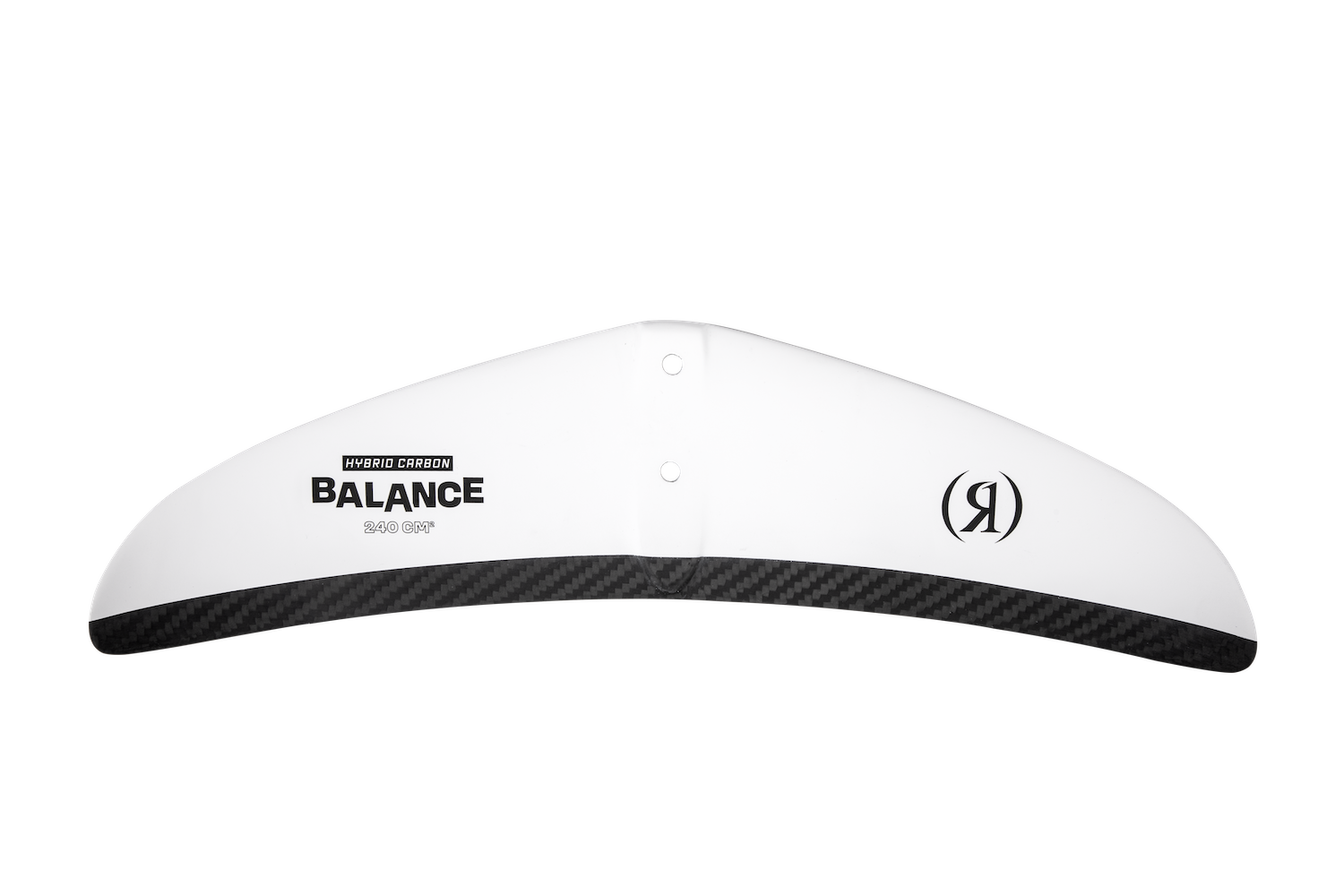

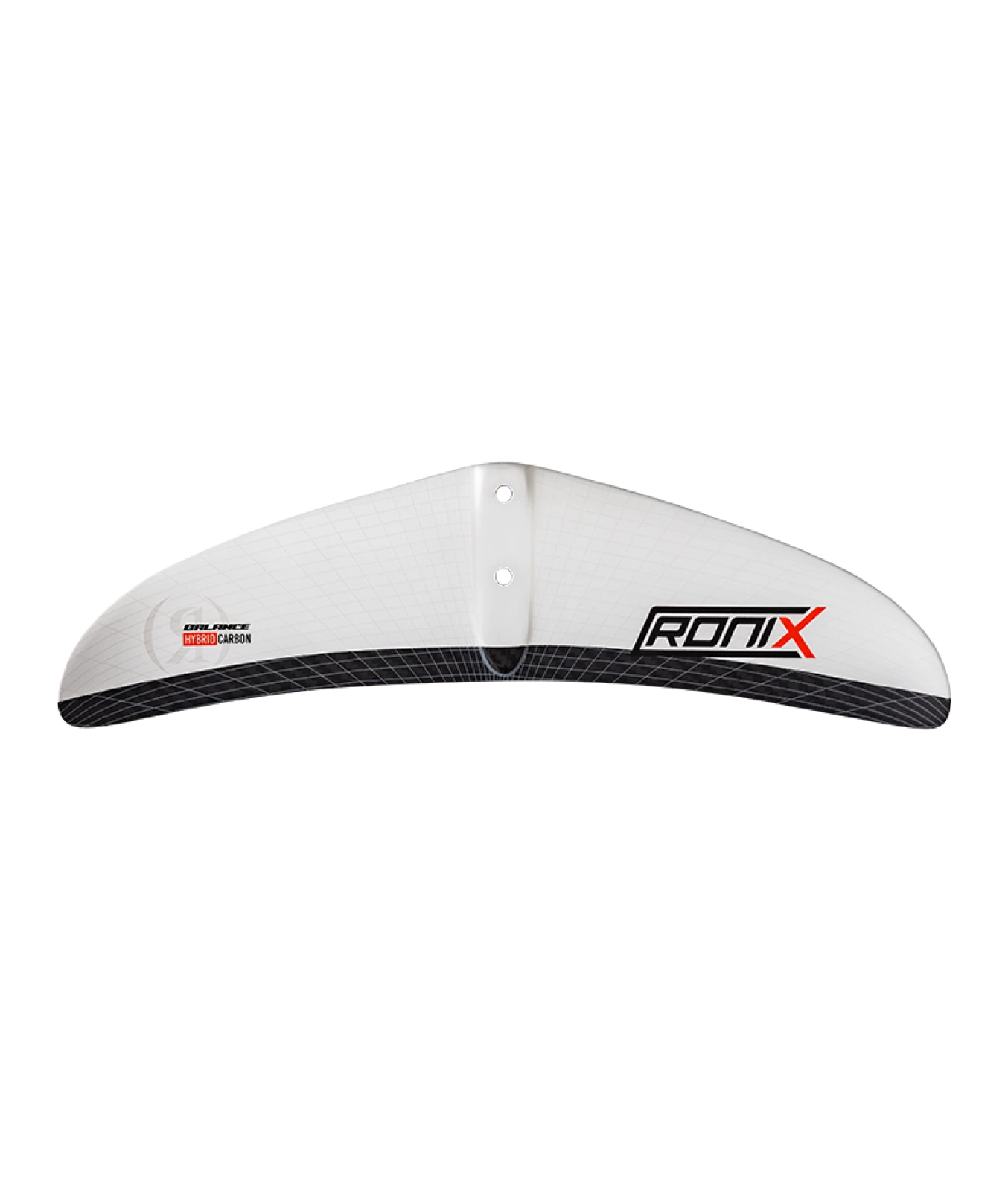

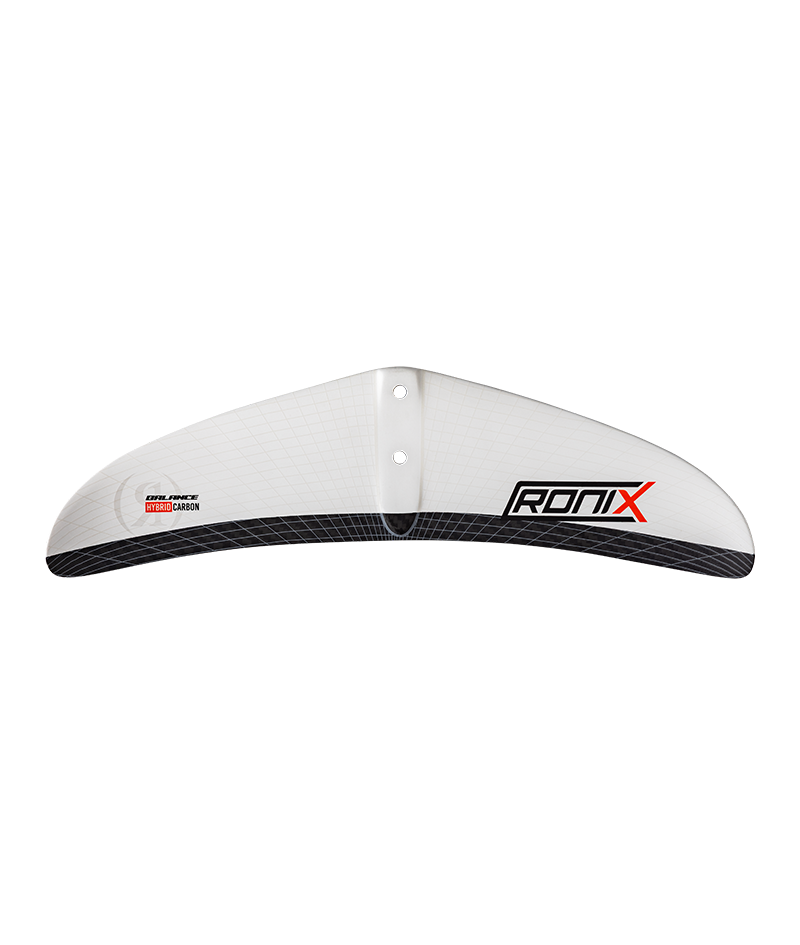

BALANCE REAR STABILIZER

240cm²





A CO-PILOT WITH A CONSCIOUS

The voice of reason mounted on the back of your Link Fuselage is there to conduct your voyage as you navigate the seas. A low temperament design that helps steer the ship and bail you out of a jam when off axis. The perfect amount of grip for those new to foiling – yet still has enough speed to transfer on the second wave. A wider base, added rake, slightly thicker profile, turned up winglets and our signature autoclave construction. The Balance wing puts an emphasis on lift and grip. The two hardest aspects of learning how to foil are generating a consistent lift while you learn how to pump and maintaining stability as you learn how the nuances of turning. Phenomenal beginner stabilizer? Most definitely. But also preferred by high end riders that want a little extra lift and stability on the back of their sleek High Aspect front wing. A proven low temperament design.

SPECIFICATIONS

WINGSPAN                              - 35cm

AVERAGE CHORD                     - 7.4

ASPECT RATIO                          - 5.1

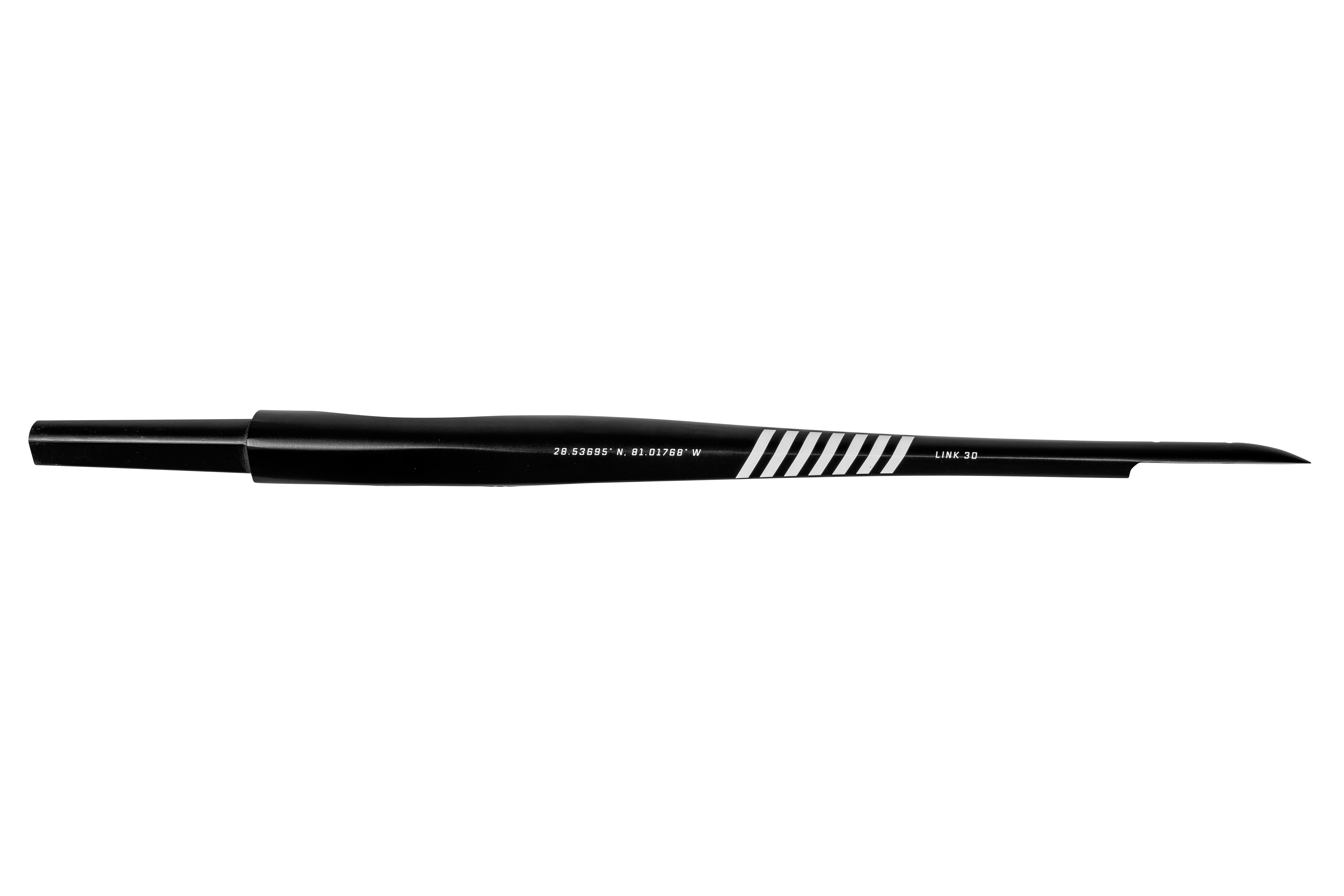

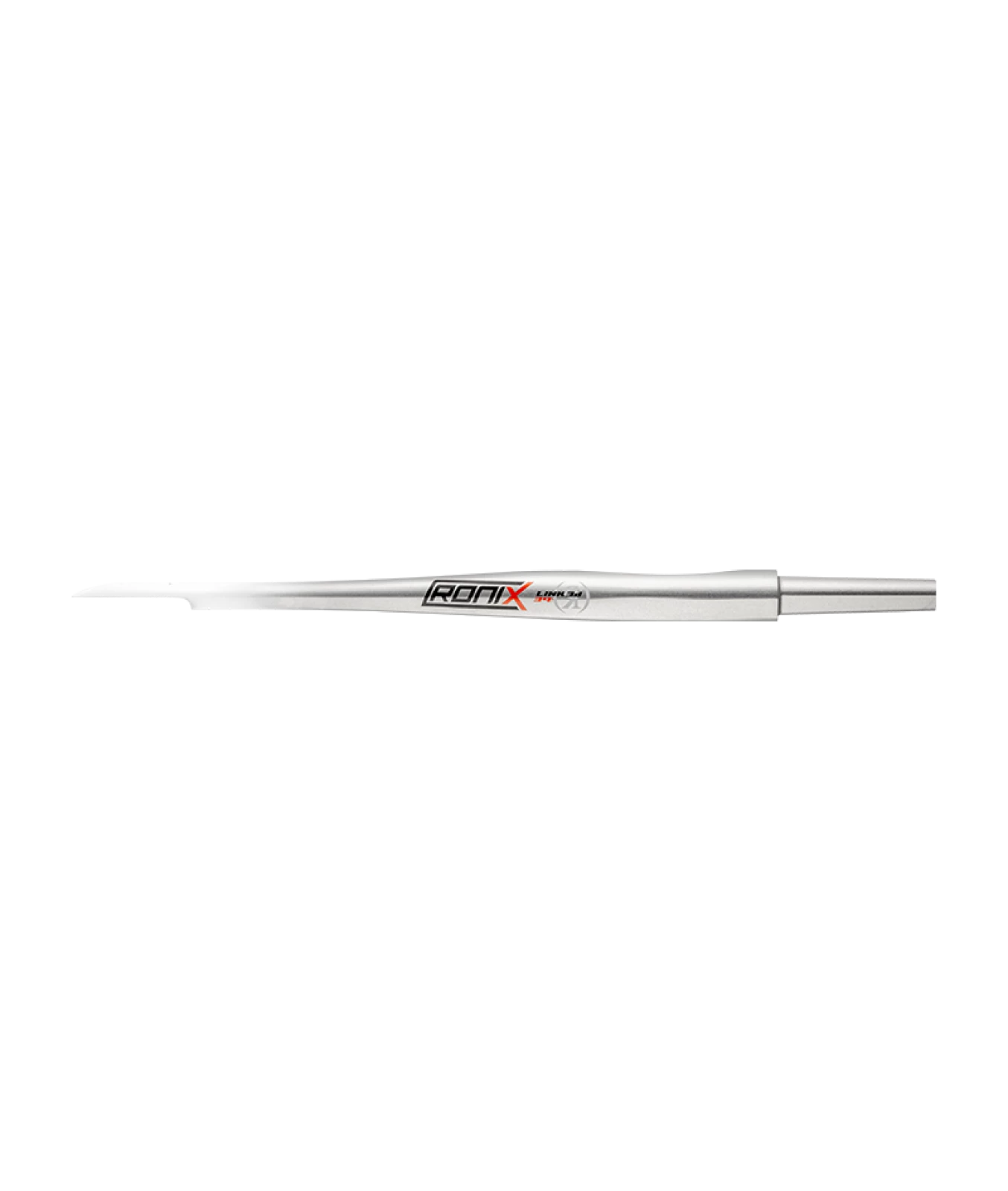

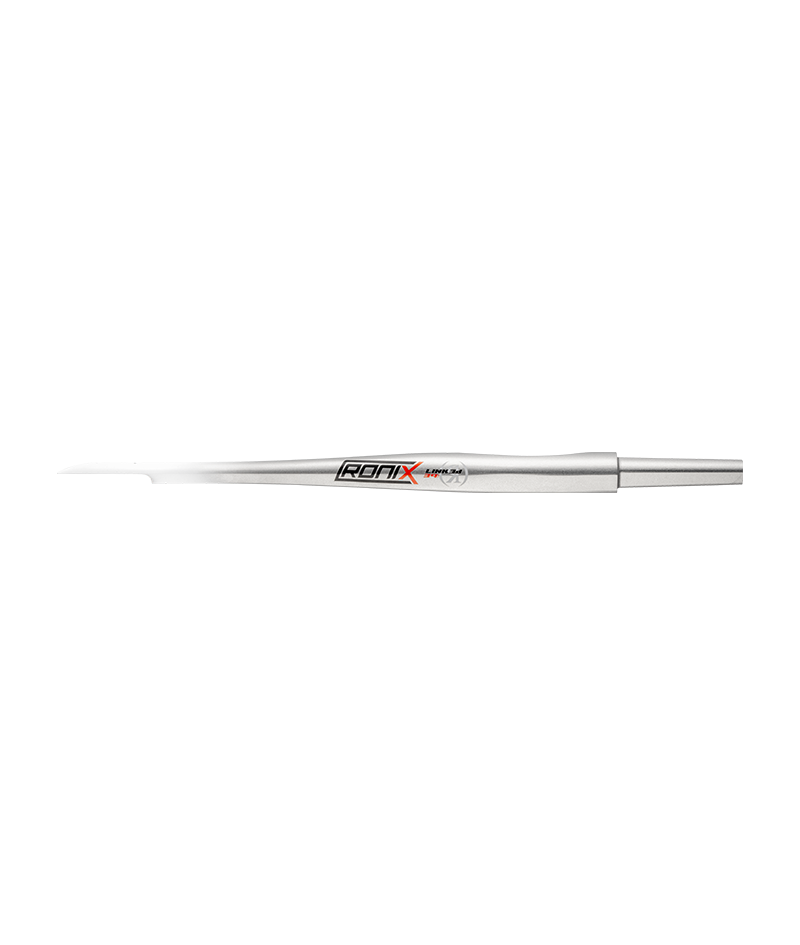

LINK 3D FUSELAGE

39cm


SOLID CONSISTENT RHYTHM
The Link 3D is the intersection to the mast, front wing and rear stabilizer with perfection in every nuance. Each fuselage starts out as a high-grade alloy in the shape of a long brick and is then milled on a 3 axis CNC machine to the exact dimension for the perfect fit between the connection points. This streamlined conical design achieves the highest marks of anything we have ever tested in rigidity and water efficiency. A strong efficient link is in many ways the driving force to a smooth predictable foiling experience.

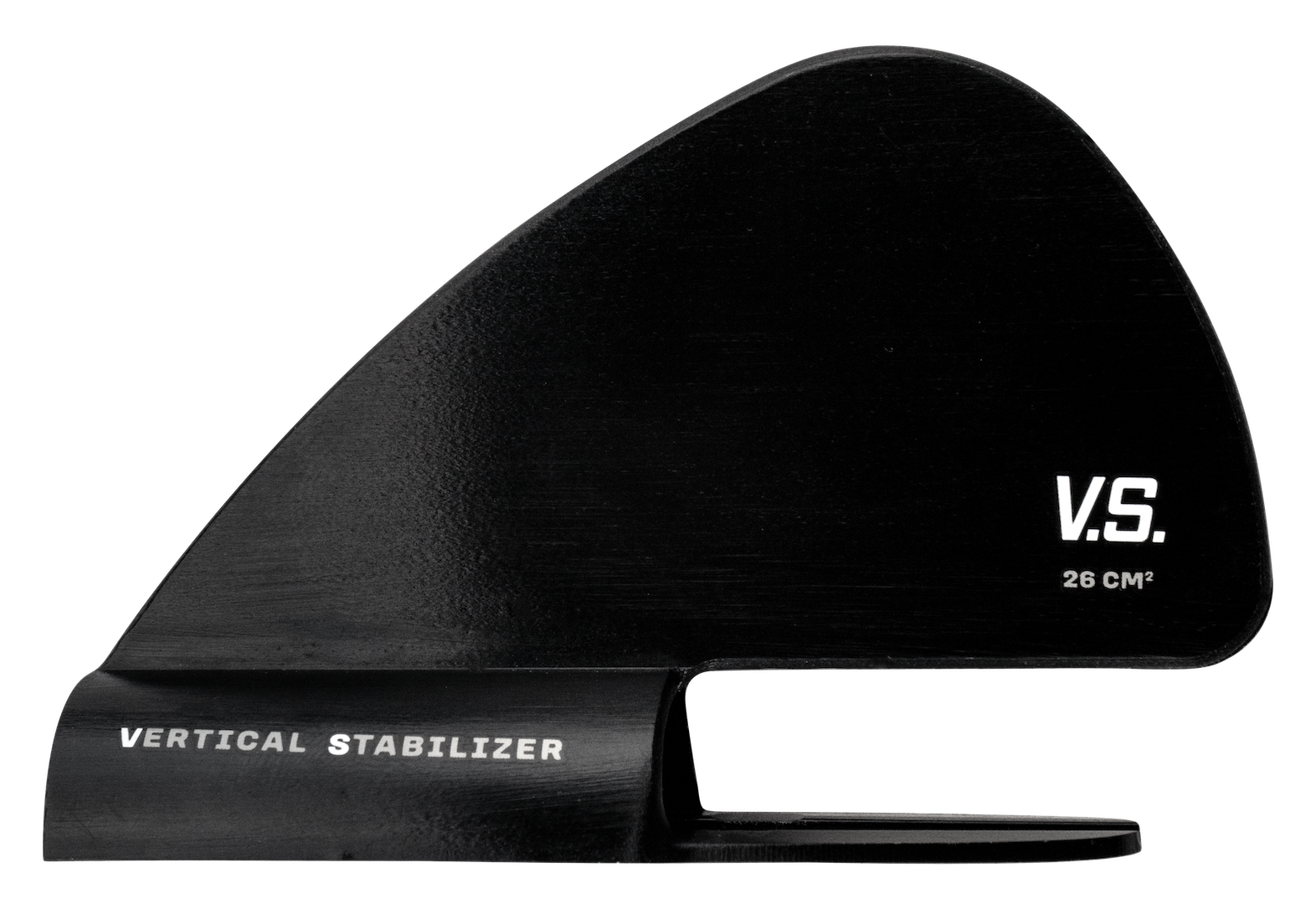

VERTICAL STABILIZER

26cm²

FOILING WILL NEVER BE THE SAME - OR AS DIFFICULT

Several years ago we took a sport that was labeled hard and made it easy with the world’s only adjustable mast. Now we are doing it all over again - this time with the only vertical stabilizer. This new patent pending invention will conveniently slide on any Ronix fuselage to help control and maintain your flight pattern in a way never thought imaginable.

WHAT DOES IT DO?

We designed this stabilizer to aid the journey of flight and are including this with every complete foil set up that comes with a balance wing. The already dependable shift mast now has a running mate to all but guarantee a quick and easy learning experience. But then we realized once you have progressed from our hybrid carbon balance series doesn’t mean you are out of the foiling challenges. Short boards, tall masts, and big front wings are so much fun to ride – but bring about a new abrupt take off that can be hard to control even for riders with a lot of foiling experience. Once a rider feels they have that foundation – the stabilizer can easily slide off to bring out the full personality of our foil setups.

WHO IS IT FOR?

Ever flown on a plane without a vertical stabilizer - why should your journey into foiling be any different? This vertical stabilizer slows down your take off and locks in your turn. Now a rider will have more of a controlled pitch deepwater start and an easier to navigate rolling style turn vs. the more experienced yaw style arc. Once a rider feels they have that foundation – the stabilizer can easily slide off to bring out the full personality of our foil setups.

SUMMARY

A commitment to the new era in flight continues. Whether you are a new rider looking for every advantage to your journey – or an intermediate rider looking to step into an advanced series the vertical stabilizer is an easy add on that will greatly change your experience. The world’s only vertical stabilizer that will easily slide on any Ronix fuselage to help control and maintain your flight pattern in a way never thought imaginable. Short boards, tall masts, and big front wings are so much fun to ride – but bring about a new abrupt take off that can be hard to control even for riders with a lot of foiling experience. This stabilizer slows down that take off so a rider will have a much smoother transition start. Then, once you are riding, this stabilizer will act as a center fin locking in with every turn. Now a rider will have more of a controlled pitch and an easier to navigate locked in turn. Once a rider feels they have that foundation – the stabilizer can easily slide off to bring out the full personality of our foil set ups.

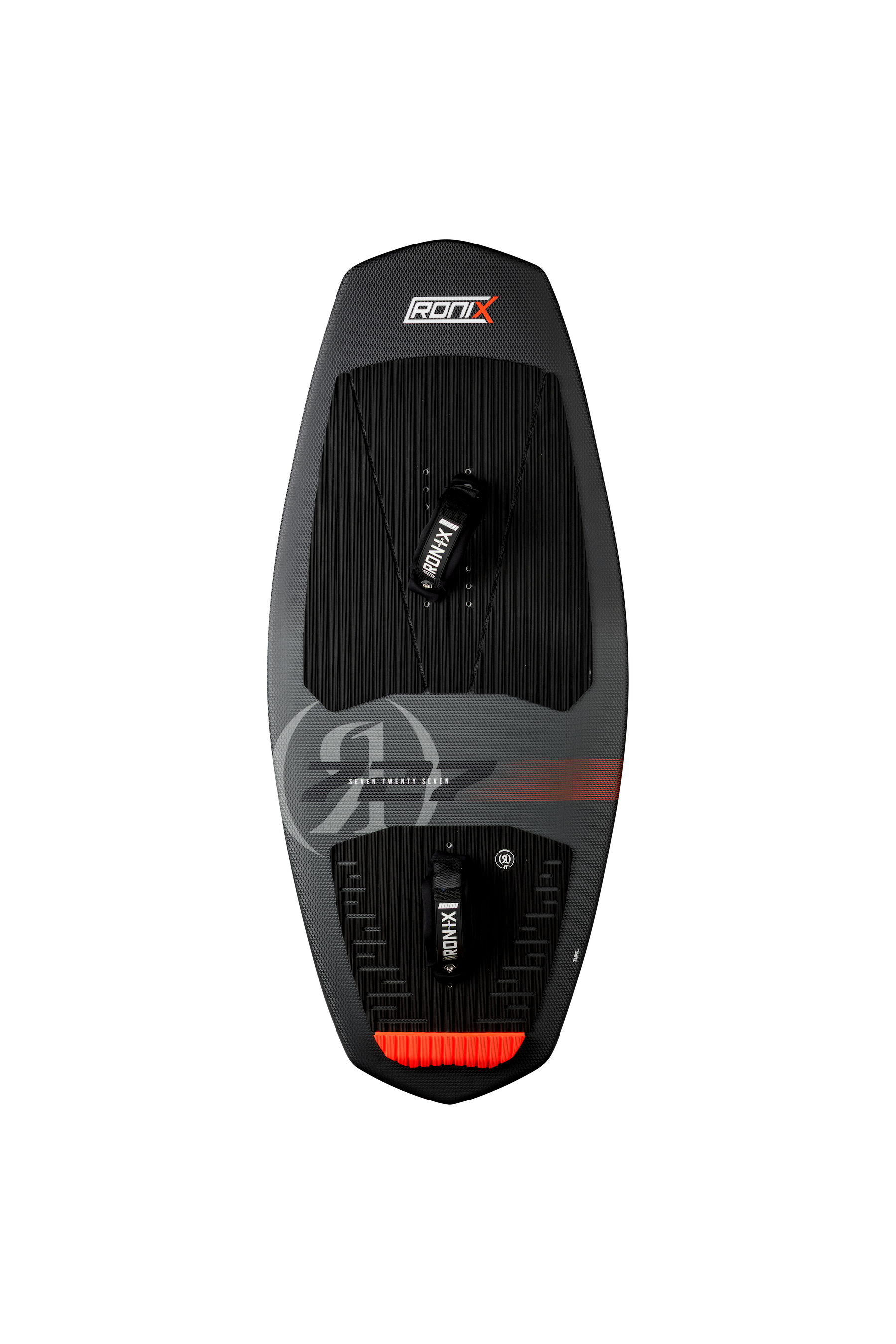

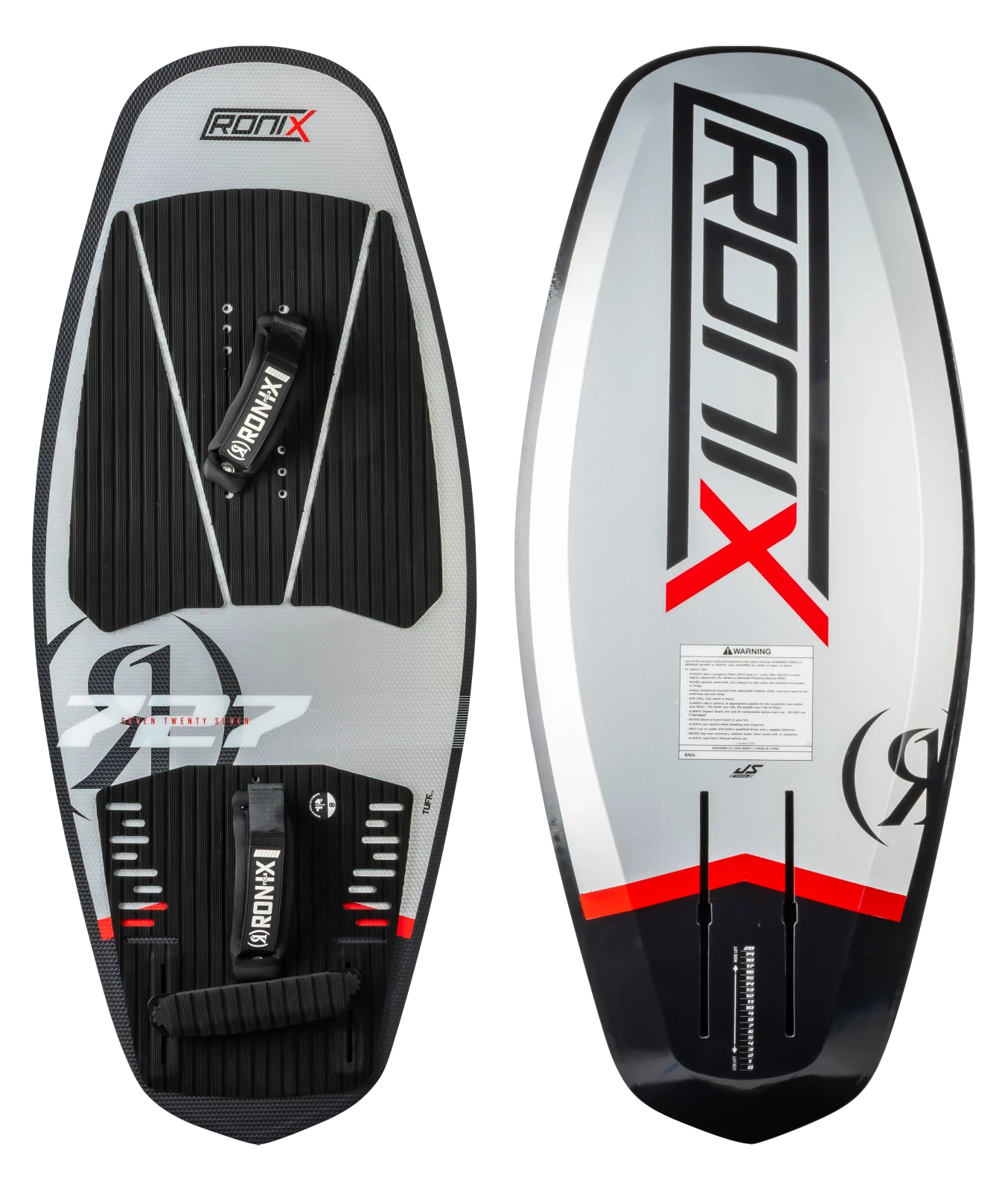

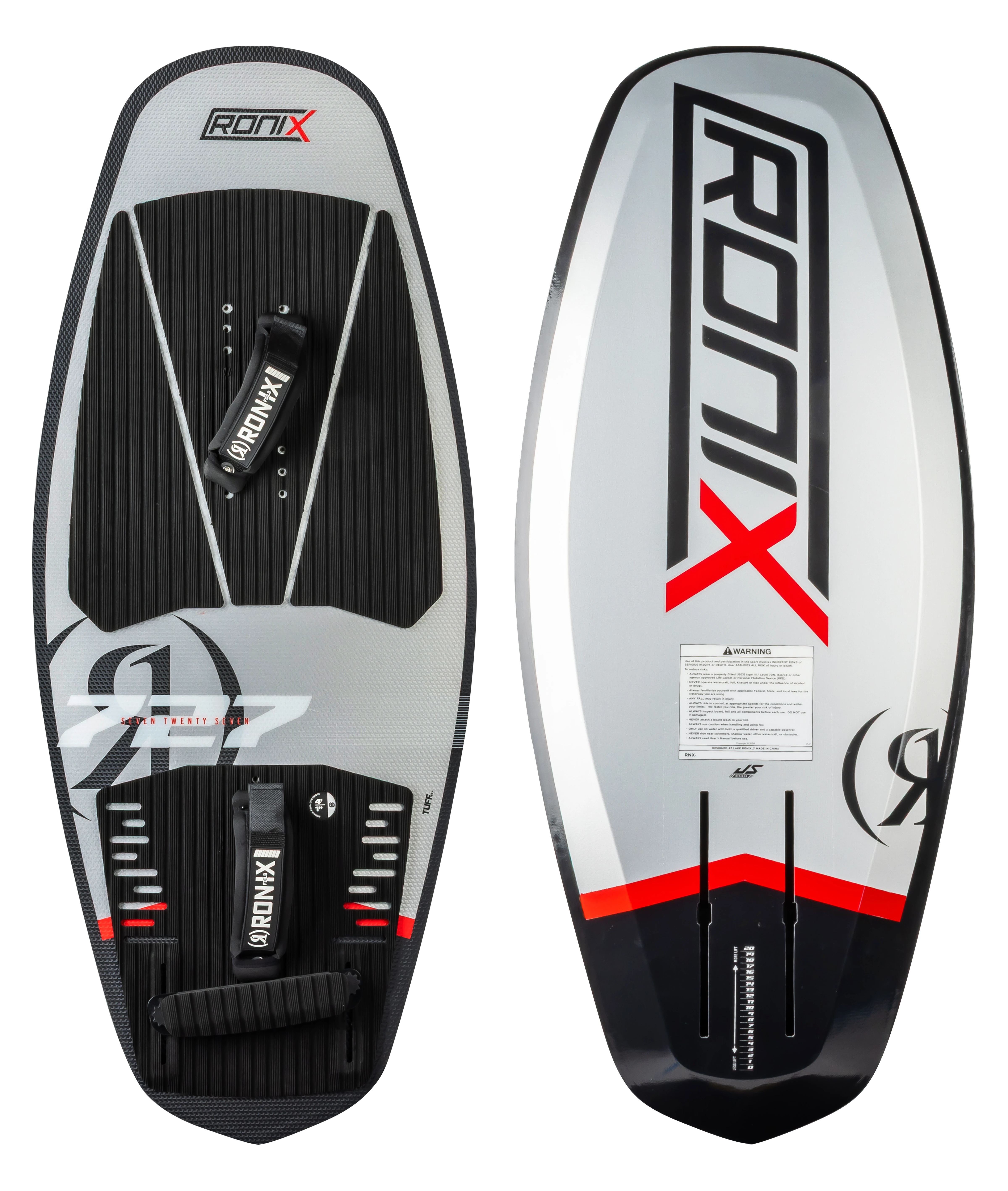

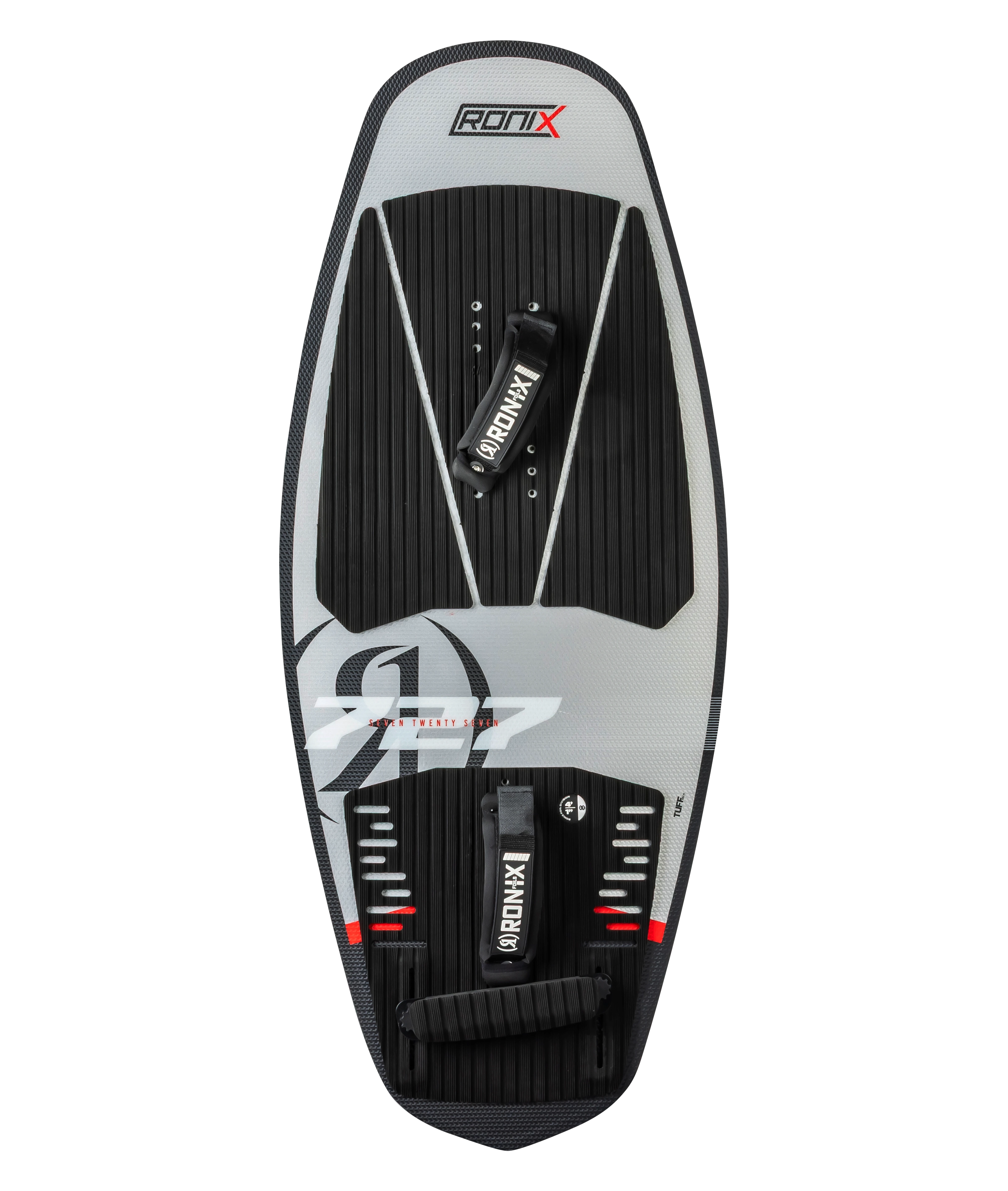

727 TUFF TECH FOILBOARD

3'8" / 4'1" / 4'8"


THE FOUNDATION TO A PROPER FLIGHT

The perfect shape for somebody new to foiling that wants that stable, neutrally balanced riding style. A very consistent, medium-tempo, thin-profile board that will always have you in control. Available in 3 sizes - this shape and construction will have you in a stable backseat position always feeling comfortable with your flight while the straps that are included help with deep water starts. Our most stable shape the 727 is the perfect counter to our Balance series collection blending the learning curve, to mid/high level performance. A thin profile bulletproof construction wrapped in our Surface Skin that helps break up the water on landings. Complete with an exaggerated bevel outlining the board to help disperse water as the board touches down. Last but not least - high end riders rejoice you now have an affordable option with straps to master your aerials.

Construction – TUFF TECH

Riding Level – ALL LEVELS

Thickness - THIN

Rail - FULL

Pad - BLENDED GROOVED EVA

FEATURES

+ 10” track length with industry standard 3.5” width between tracks

+ Foil Specific Design – all attributes of the rocker, bevel, profile, and swing weight were designed specifically for foiling

+ Tuff Tech Construction – Made from our popular Koal Classic core and then wrapped in super tough Surface Skin

+ Blended EVA Traction Pad – A compound made from both foam and rubber with machined grooves for a softer feel and the best    grip in foiling

+ Footwear – Adjustable foot straps are included for easier deep water starts and for airs

+ Inserts – 3 stance options for both your front and rear foot

+ Handmade by Robots – Every 727 foilboard is made from a machined core to the exact tolerance we spec’d out

+ Lava Resin – Made from a high temp resin to withstand extreme heat

Board Size Chart

LENGTH

(FT/IN)
SIZE

(LTRS)
ROCKER

(IN)
MAX WIDTH

(IN)
INTERMEDIATE WEIGHT RANGE

(LBS)
ADVANCED WEIGHT RANGE

(LBS)
3'8"132.3"20.5"UP TO 160ALL SIZES
4'1"14.82.4"20.8"UP TO 180ALL SIZES
4'8"19.82.5"21.3"160+NOT RECCOMENDED

Also Includes

Board Straps

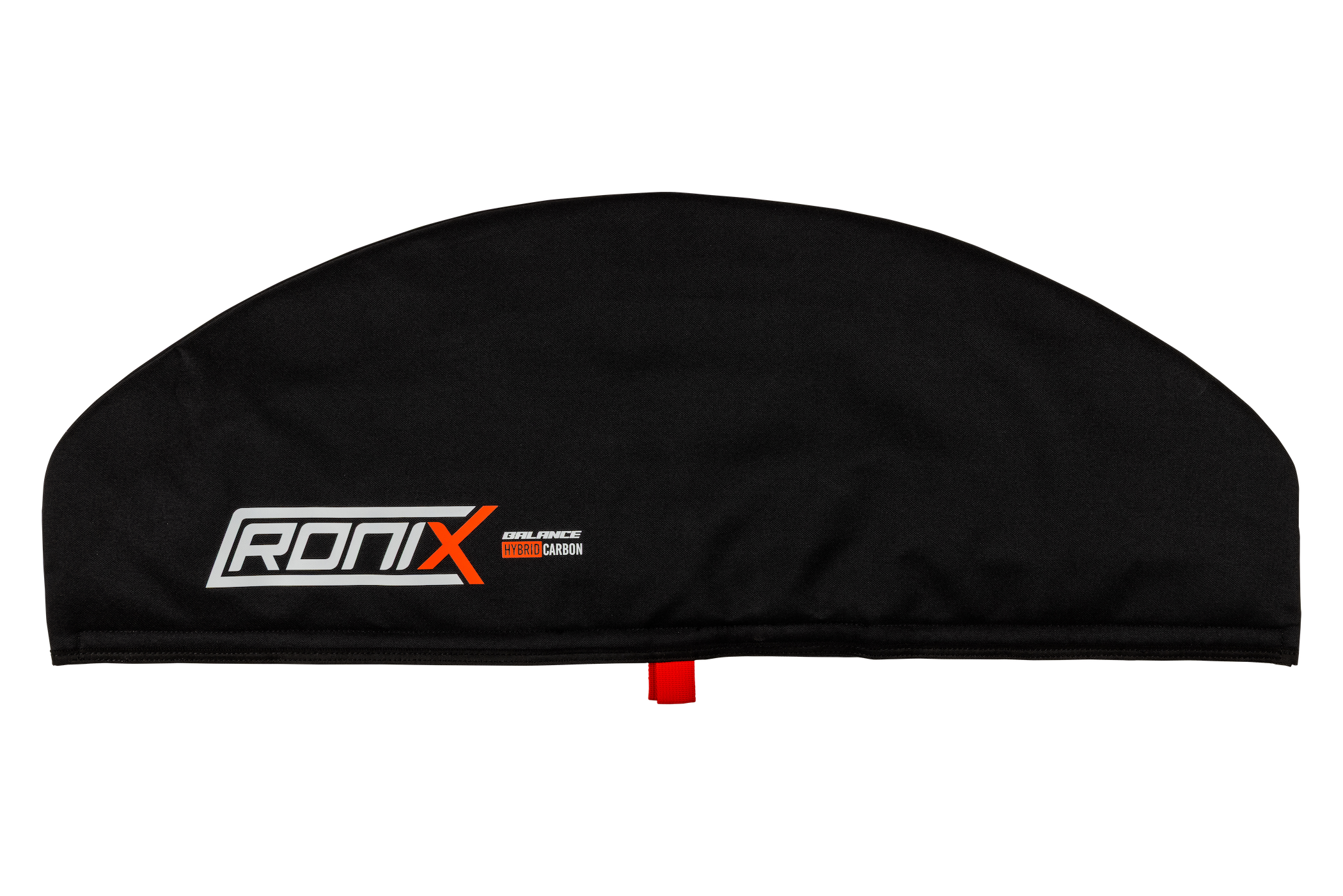

Balance Front Wing Neo Sleeve

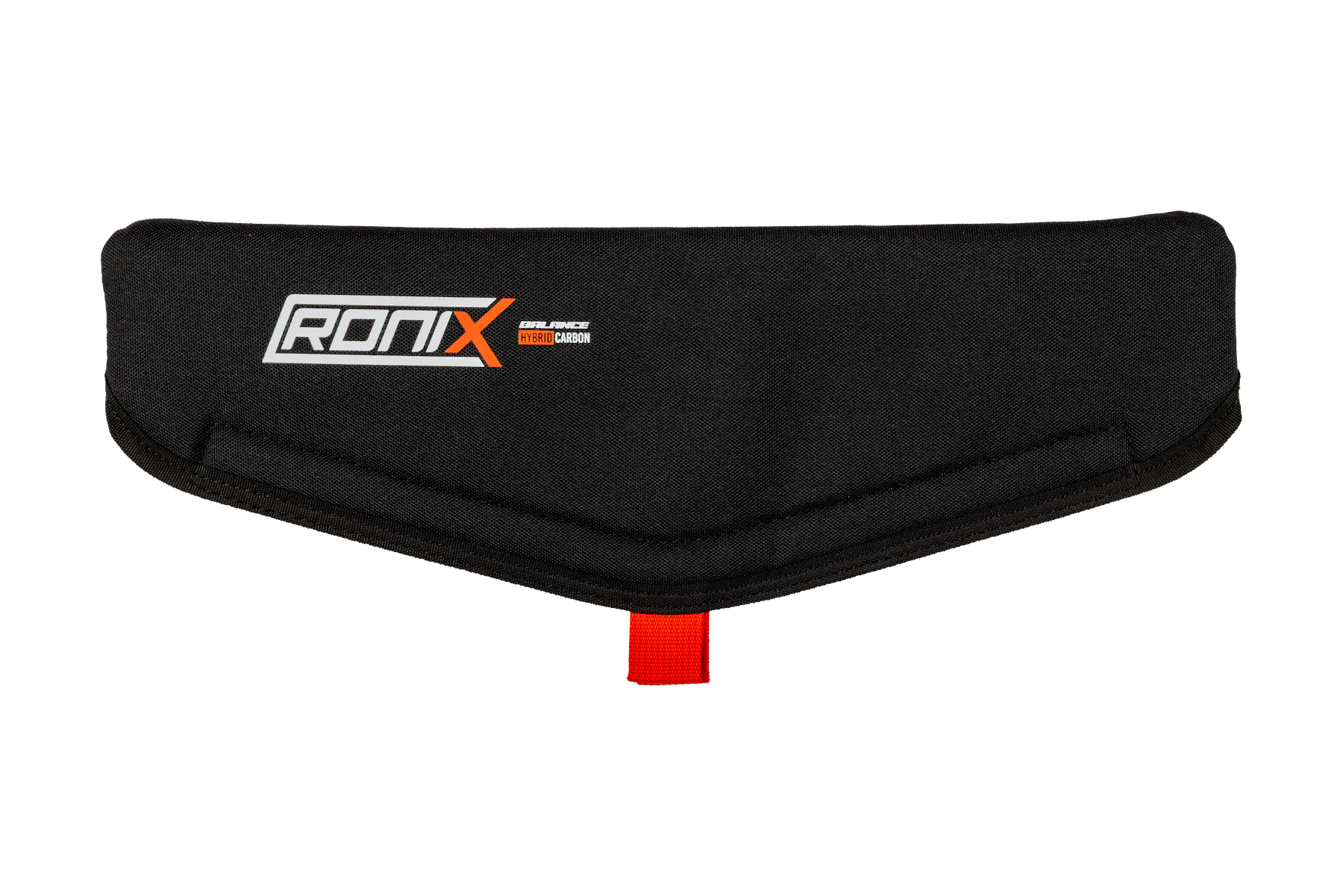

Balance Rear Stabilizer Neo Sleeve

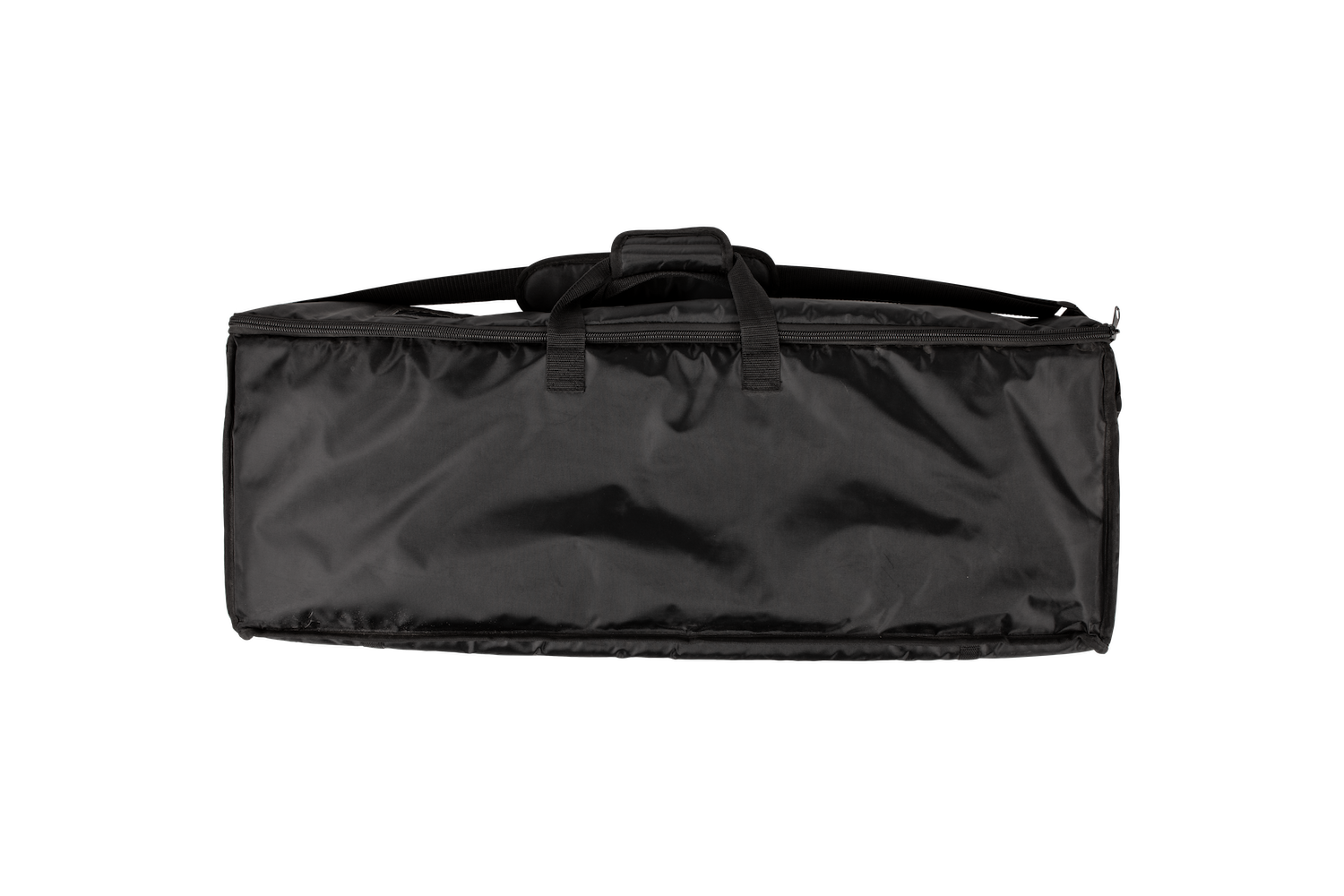

Padded Foil Kit Bag

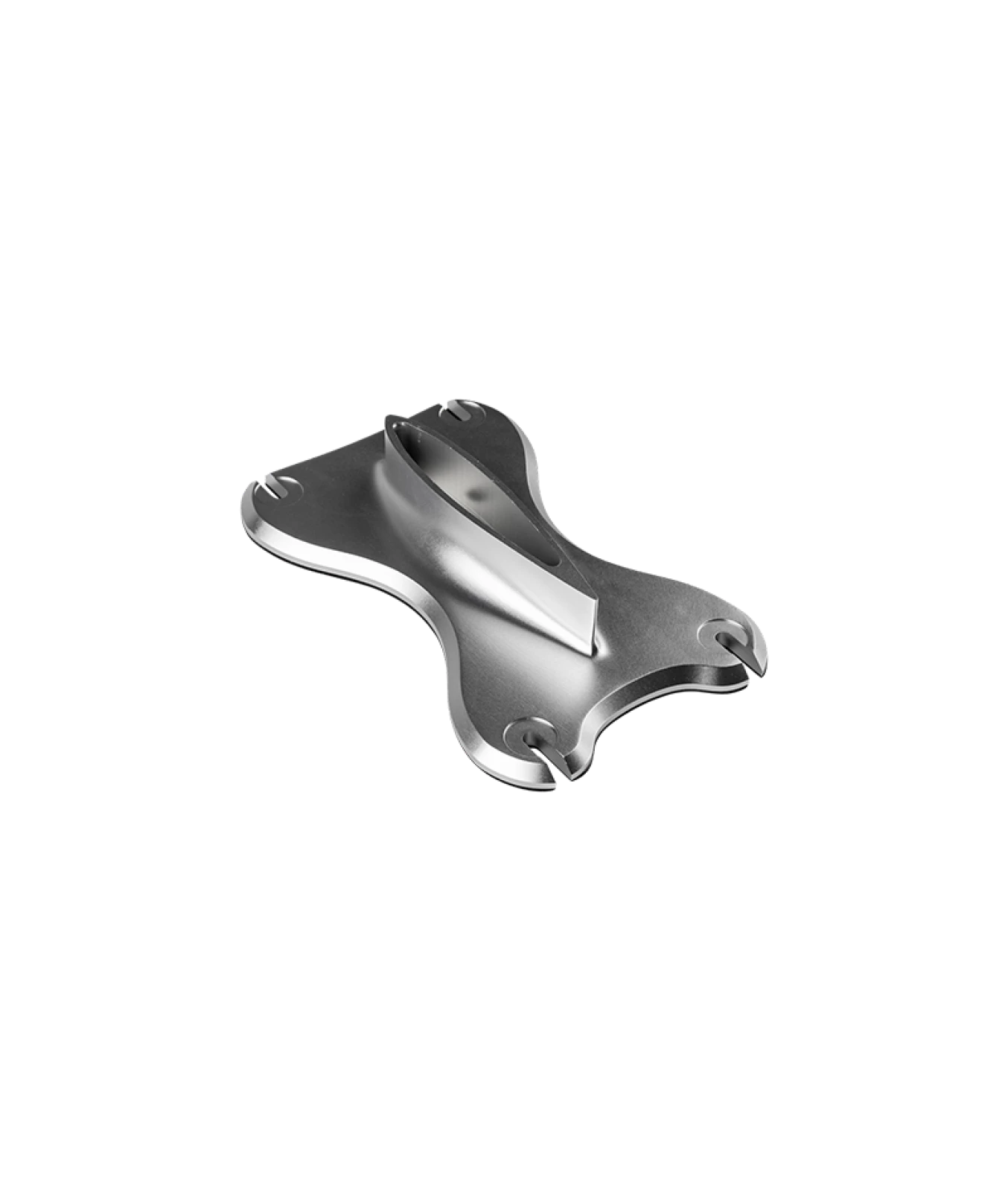

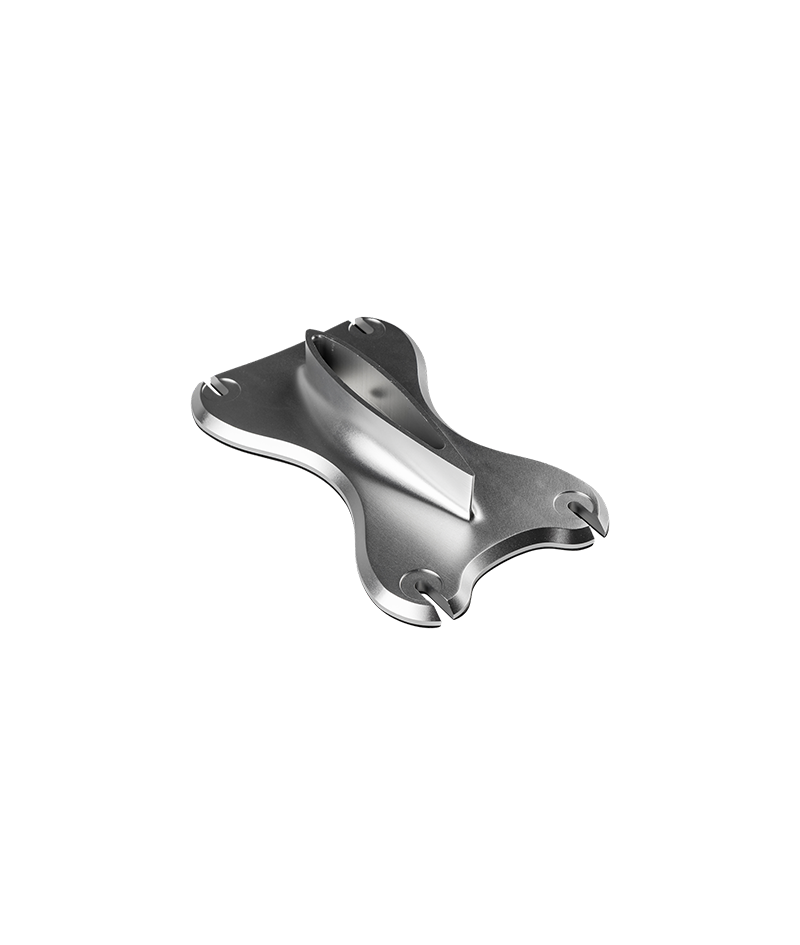

Mast Top Plate
Hardware Case
Hardware
+1° Shim & -1° Shim
T Handle Tool
Anti-Seize Grease
Fuselage Tip Protector

                                              Foil Sticker Sheet

ASSEMBLY

This is the order we encourage you to assemble your foil kit.

1. Slide fuselage into front wing - tighten all 3 (A) screws.

2. Overlay fuselage onto rear stabilizer - tighten both (D) screws. If you want to use the vertical stabilizer loosen the 2 (D) screws and the stabilizer will easily slide on in between the fuselage and the rear stabilizer. No additional hardware is required.

3. *Determine desired mast height - place both (B) inserts so that they go through both pieces of the adjustable mast - tighten (B) screws into inserts.

4. Insert mast into fuselage - tighten 2 of the 4 (E) screws.

5. Insert mast into mast top plate - tighten remaining 2 of 4 (E) screws.

6. Slightly attach all 4 foil board track screws (C) into the track inserts (C).

7. Place 2 track insert/screws (C) into left track, place remaining 2 insert/screws (C) into right rack. Slide one set all the way up the track, and the other set all the way down the track.

8. Place mast top plate on to board so that the track aligns with top plate grooves.

9. Slide all 4 insert/screws (C) into top plate grooves - and proceed to tighten.

10. If you are unsure of where to place mast top plate, start with the mast top plate as close to the tail of the board as possible, for added stability. As your skills progress, gradually slide mast top plate forward for added lift.

11. Always ensure screws are tightened with every use.

* If you have a fixed 24" or 28" mast, skip step 3.
